Axle Assembly — 2016 workshop reference 2700

Axle Assembly — original illustration 1, reference 2700Original colors & callouts · Select to enlarge

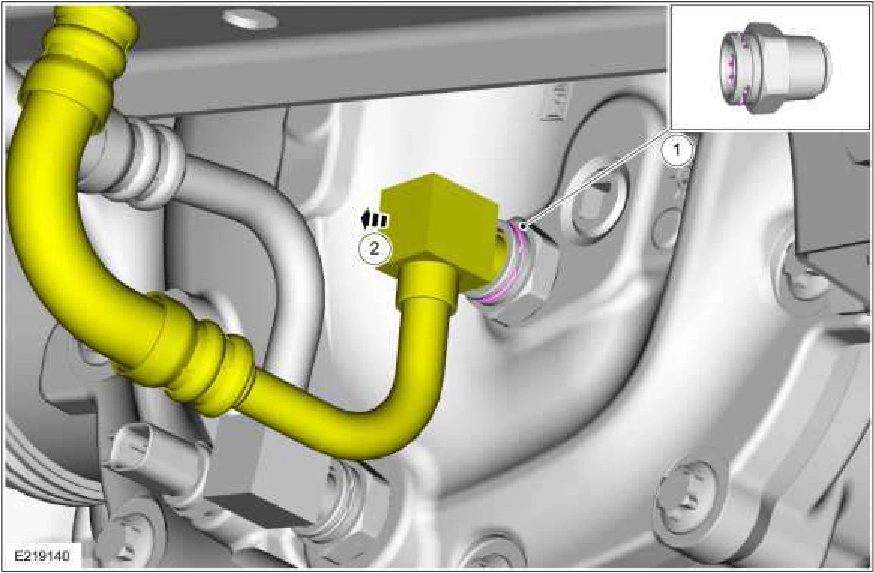

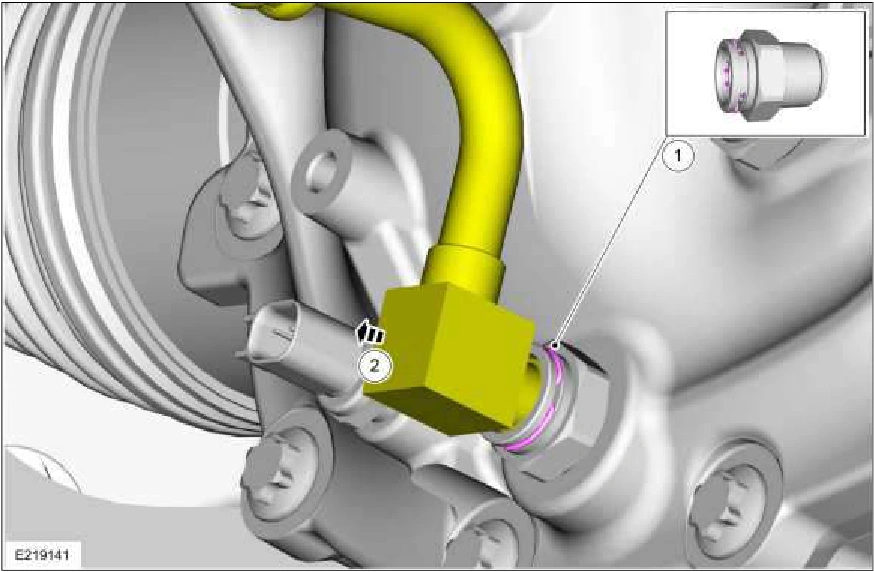

7. If equipped.

1. Remove the differential cooling supply line retaining clip.

2. Remove the differential cooling supply line and position aside.

Axle Assembly — original illustration 2, reference 2700Original colors & callouts · Select to enlarge

8. Disconnect the differential vent tube.
