Axle Assembly — 2016 workshop reference 2702

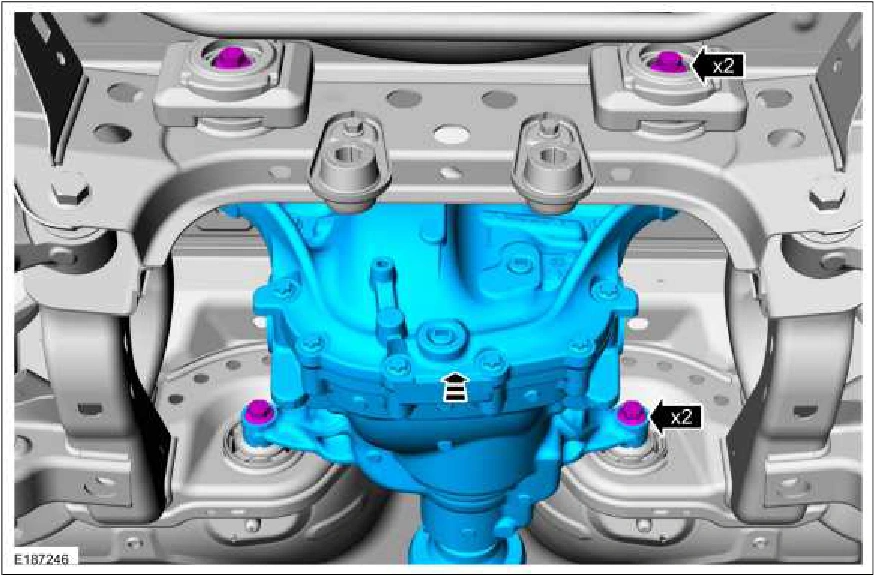

Axle Assembly — original illustration 1, reference 2702Original colors & callouts · Select to enlarge

Step 2

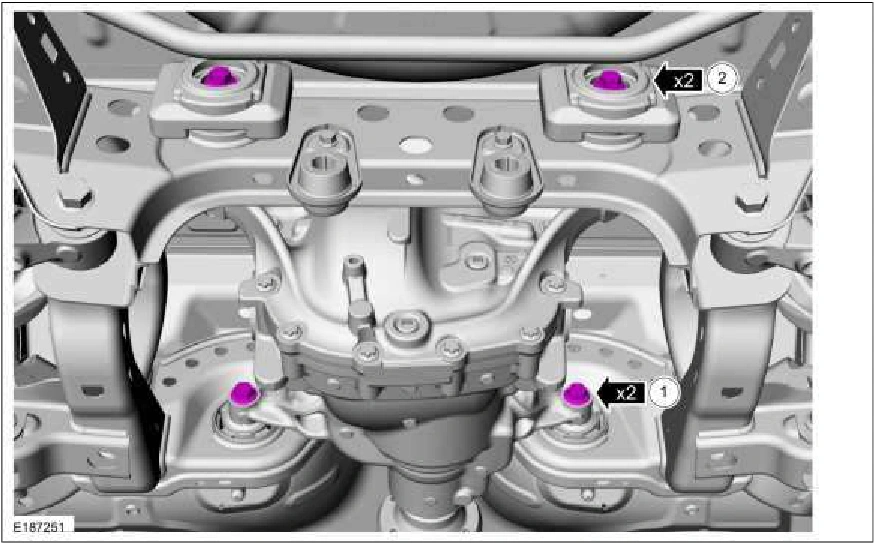

1. Tighten the forward differential mounting bolts. Torque : 129 lb.ft (175 Nm)

2. Tighten the rear differential mounting bolts. Torque : 129 lb.ft (175 Nm)

Axle Assembly — original illustration 2, reference 2702Original colors & callouts · Select to enlarge

3. Connect the differential vent tube.

Source reference 2702
