2016 workshop · Driveline

Axle Assembly

205-02 Rear Drive Axle-Differential

2016 MustangReference 2,701 / 6,619HTML edition
← Chapter contentsProcedure contents
Axle Assembly — original illustration 1, reference 2701Original colors & callouts · Select to enlarge

9. NOTICE: The rear differential is heavy and will require to be supported by a transmission jack

before the fasteners are removed.

Using a transmission jack, remove and discard the differential mounting bolts and remove the differential. Use the General Equipment: Transmission Jack

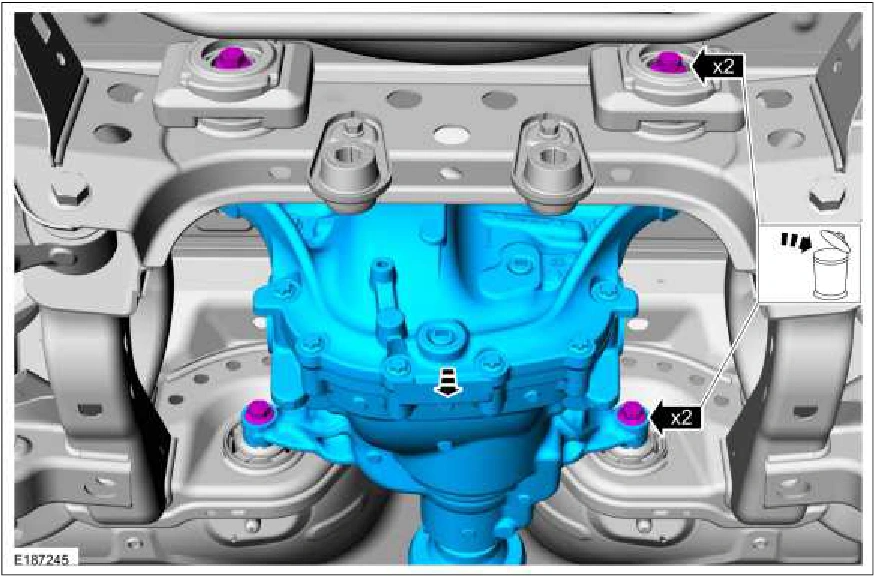

Axle Assembly — original illustration 2, reference 2701Original colors & callouts · Select to enlarge

Installation

1. NOTE: Only install the differential mounting bolts hand tight at this time.

Using a transmission jack, install the differential and the new differential mounting bolts hand tight. Use the General Equipment: Transmission Jack

Source reference 2701
