Axle Assembly

205-02 Rear Drive Axle/Differential 2016 Mustang

Removal and Installation Procedure revision date: 07/29/2015

Base Part Number: 4000

Special Tool(s) / General Equipment

Flat Headed Screw Driver

Transmission Jack

Removal

1. Remove the muffler and tailpipe assembly. Refer to: Muffler and Tailpipe (309-00A Exhaust System - 2.3L EcoBoost (231kW/314PS), Removal and Installation). Refer to: Muffler and Tailpipe (309-00B Exhaust System - 3.7L Duratec (227kW/301PS), Removal and Installation). Refer to: Muffler and Tailpipe (309-00C Exhaust System - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation). Refer to: Muffler and Tailpipe (309-00D Exhaust System - 5.2L 32V Ti-VCT, Removal and Installation).

2. Remove both rear halfshafts. Refer to: Rear Halfshaft (205-05 Rear Drive Halfshafts, Removal and Installation).

Step 3

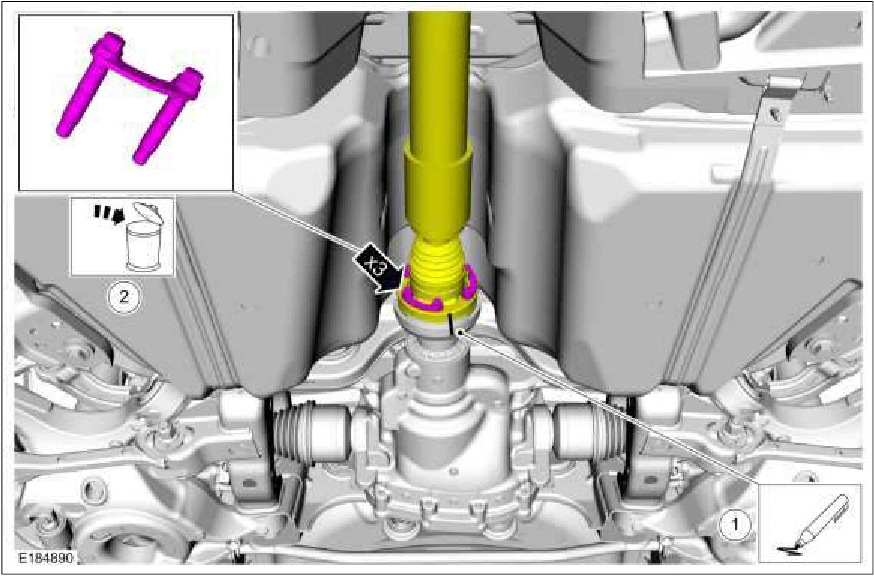

1. Index mark the driveshaft and the pinion flange for reference during installation.

2. Remove and discard the driveshaft-to-pinion flange bolts.

Axle Assembly — original illustration 1, reference 2698Original colors & callouts · Select to enlarge

4. NOTICE: Do not remove driveshaft from the pinion flange by pulling on the driveshaft tube.

Damage to the CV-joint can result.

1. Support the driveshaft.

2. Using a screwdriver inserted into the slot on the pinion flange, pry the driveshaft from the pinion flange.

Source reference 2698
