Axle Assembly — 2016 workshop reference 2699

Use the General Equipment: Flat Headed Screw Driver

3. Separate the driveshaft from the pinion flange.

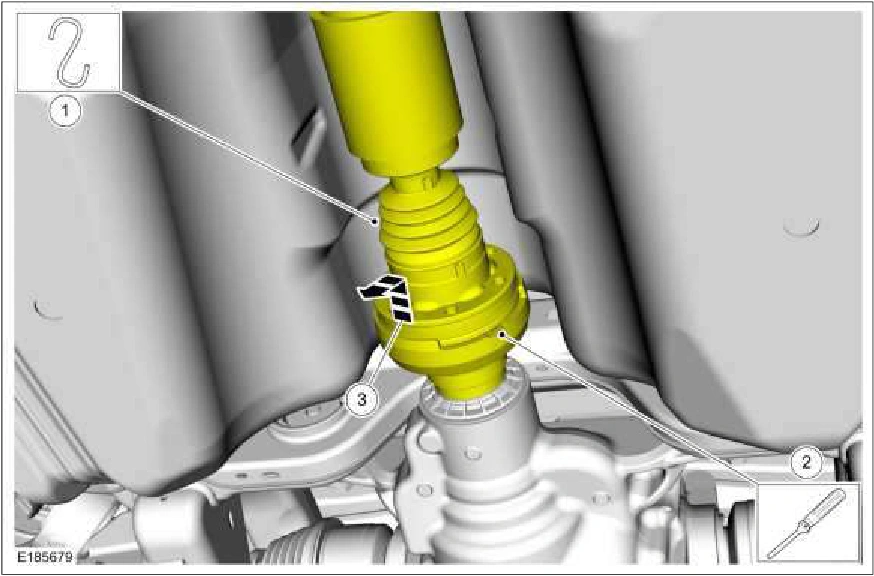

Axle Assembly — original illustration 1, reference 2699Original colors & callouts · Select to enlarge

5. If equipped. Disconnect the differential fluid temperature sensor connector.

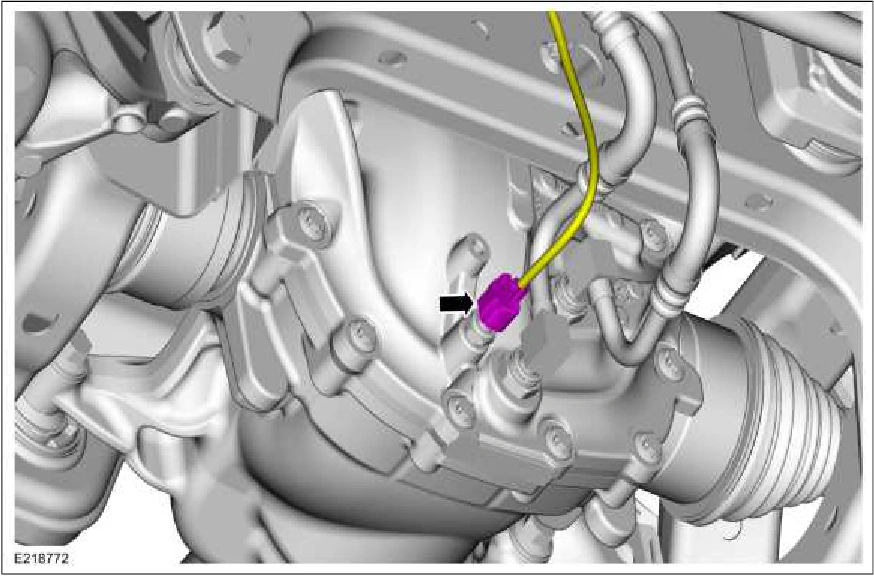

Axle Assembly — original illustration 2, reference 2699Original colors & callouts · Select to enlarge

6. If equipped.

1. Remove the differential cooling return line retaining clip.

2. Remove the differential cooling return line and position aside.

Source reference 2699
