Axle Assembly — 2016 workshop reference 2703

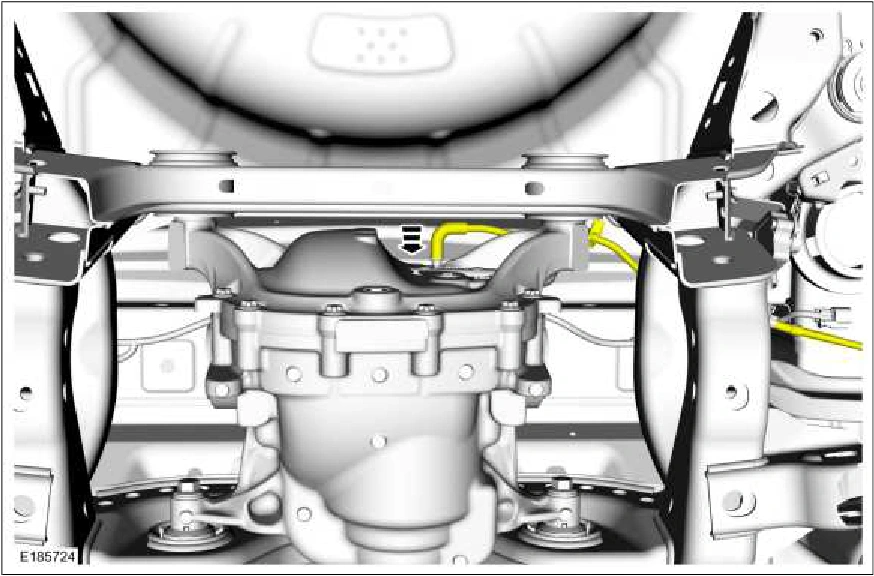

Axle Assembly — original illustration 1, reference 2703Original colors & callouts · Select to enlarge

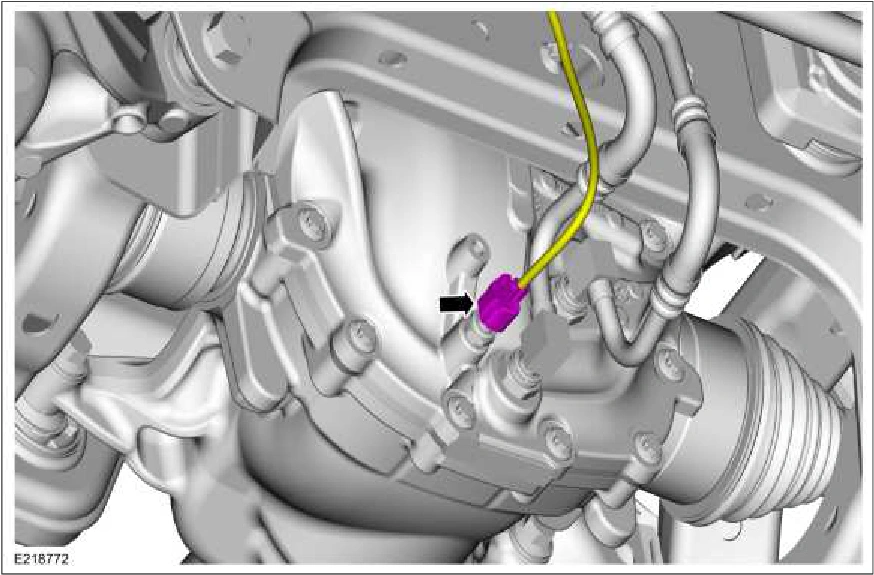

4. If equipped. Connect the differential fluid temperature sensor connector.

Axle Assembly — original illustration 2, reference 2703Original colors & callouts · Select to enlarge

5. If equipped.

1. Install the differential cooling supply line.

2. Install the differential cooling supply line retaining clip.
