Axle Assembly

205-02 Rear Drive Axle-Differential

2016 MustangReference 2,705 / 6,619HTML edition
← Chapter contentsProcedure contents
Axle Assembly — original illustration 1, reference 2705Original colors & callouts · Select to enlarge

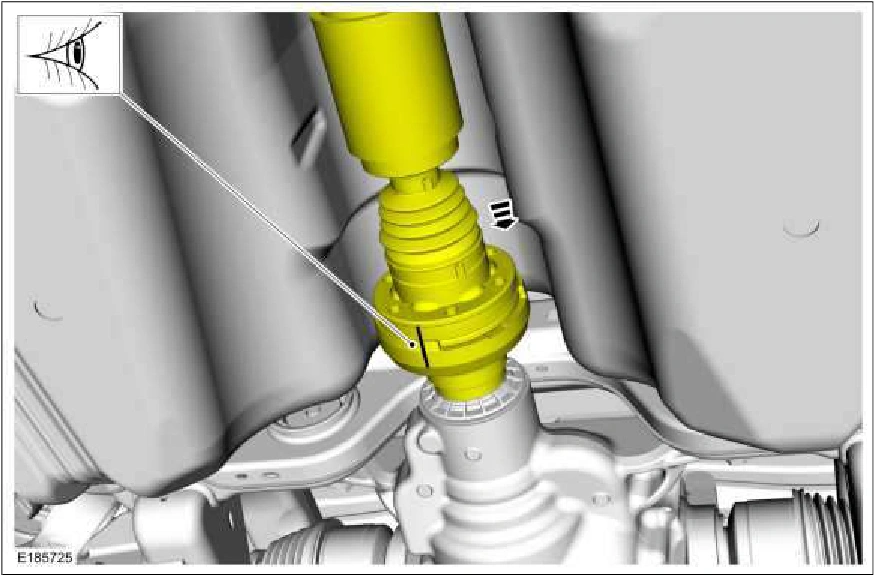

8. NOTE: Make sure the driveshaft is fully seated into the pinion flange before installing the driveshaft to pinion flange bolts.

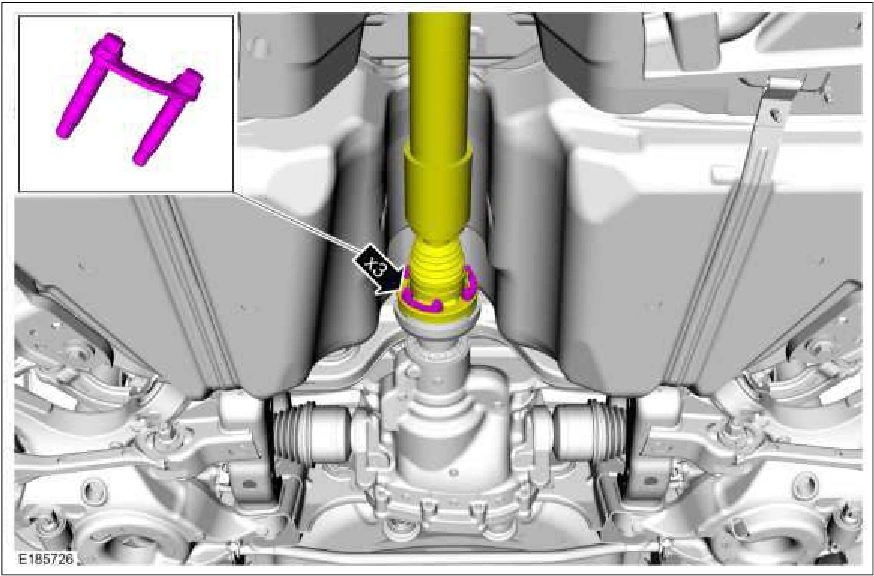

Install the driveshaft-to-pinion flange bolts. Torque : 41 lb.ft (55 Nm)

Axle Assembly — original illustration 2, reference 2705Original colors & callouts · Select to enlarge

9. Install both rear halfshafts. Refer to: Rear Halfshaft (205-05 Rear Drive Halfshafts, Removal and Installation).

10. Install the muffler and tailpipe assembly. Refer to: Muffler and Tailpipe (309-00A Exhaust System - 2.3L EcoBoost (231kW/314PS), Removal and Installation). Refer to: Muffler and Tailpipe (309-00B Exhaust System - 3.7L Duratec (227kW/301PS), Removal and Installation).
