Differential Carrier — 2016 workshop reference 2708

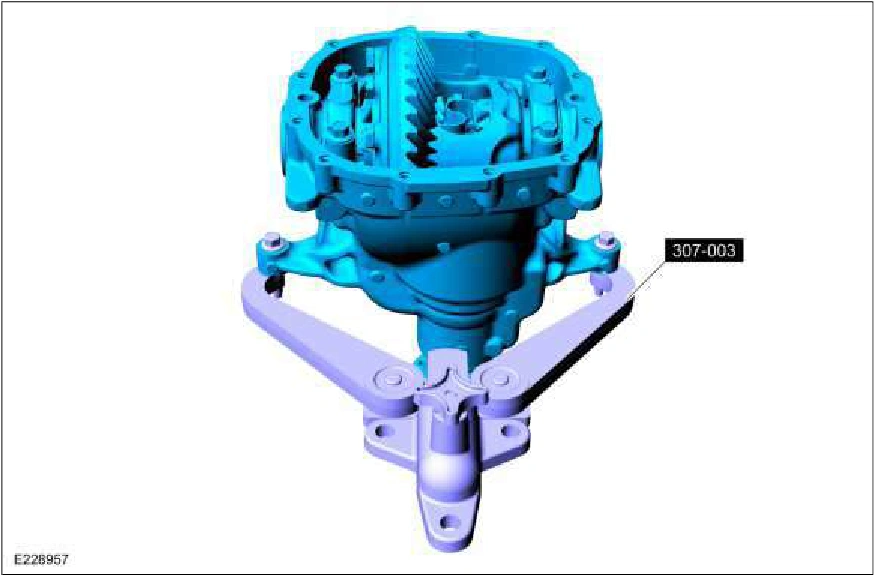

Differential Carrier — original illustration 1, reference 2708Original colors & callouts · Select to enlarge

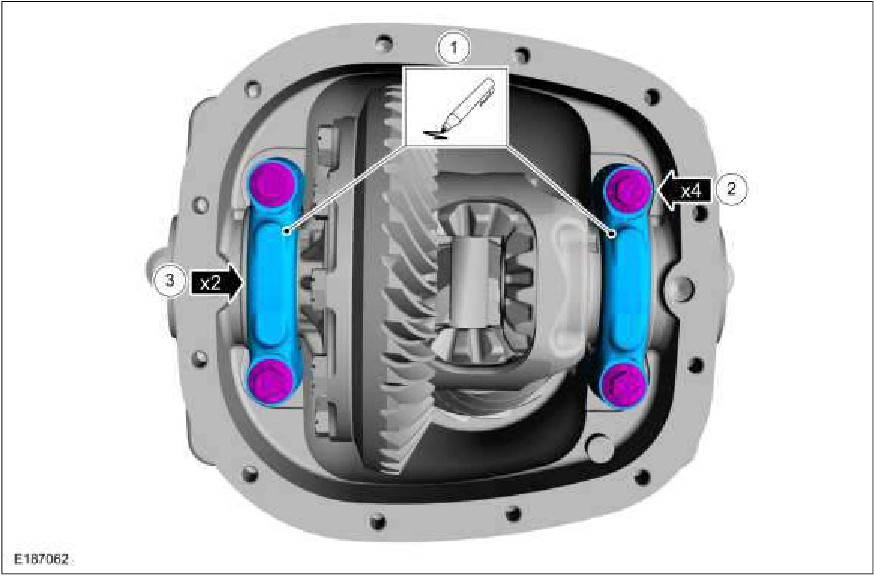

3. NOTE: The differential bearing caps and differential bearing cap bolts need to be installed in the same location as removed.

1. Mark the differential bearing caps.

2. Remove the differential bearing cap bolts.

3. Remove the differential bearing caps.

Differential Carrier — original illustration 2, reference 2708Original colors & callouts · Select to enlarge

4. NOTE: If the old differential bearing cups and shims are to be reused, they need to be installed in the same location as removed.

Mark the differential shims. Mark the differential carrier bearing cups.

Source reference 2708
