Differential Carrier

205-02 Rear Drive Axle-Differential

2016 MustangReference 2,710 / 6,619HTML edition
← Chapter contentsProcedure contents
Differential Carrier — original illustration 1, reference 2710Original colors & callouts · Select to enlarge

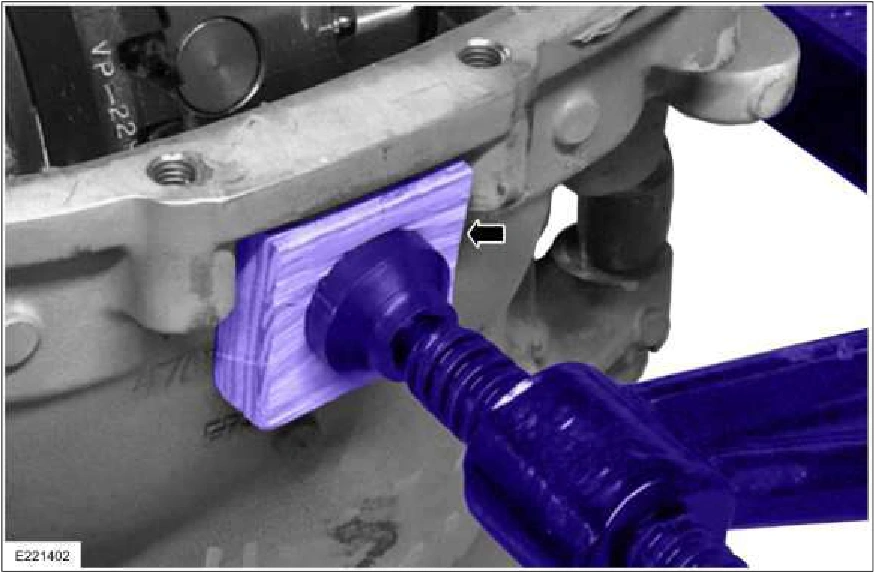

7. Tighten the C-Clamp until the housing spreads 0.020” / 0.50mm.

Differential Carrier — original illustration 2, reference 2710Original colors & callouts · Select to enlarge

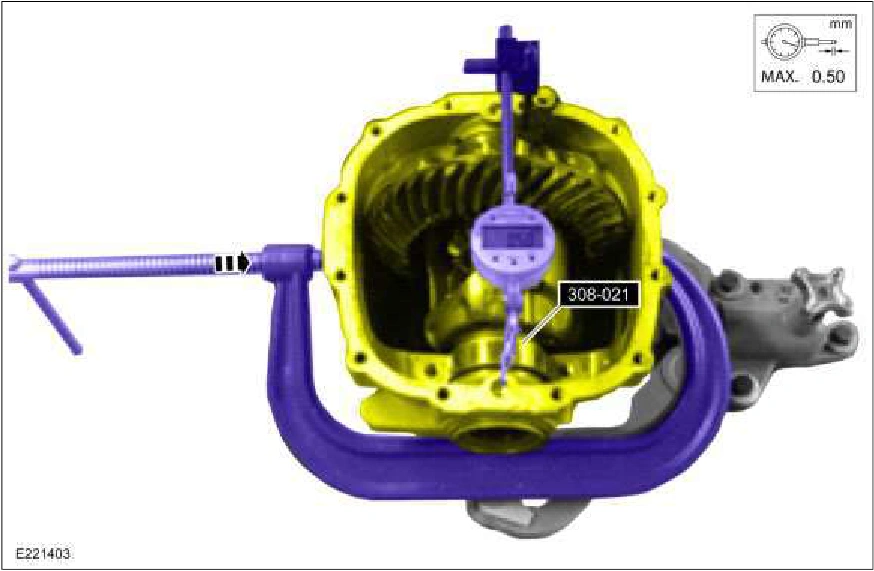

8. With the dial indicator removed. Position a wood block on the housing sealing surface. Using the tire lever, block of wood and a wrench remove the differential carrier, differential carrier bearing cups and the differential shims. Use the General Equipment: Tire Lever Use the General Equipment: Wooden Block
