4. NOTE: Have the selected shims or the previously removed shims available at this time. It will be required to hold the differential carrier and the differential carrier bearing cups in until shims are installed.
NOTE: Differential bearing shims are to be installed with the chamfer facing outboard.

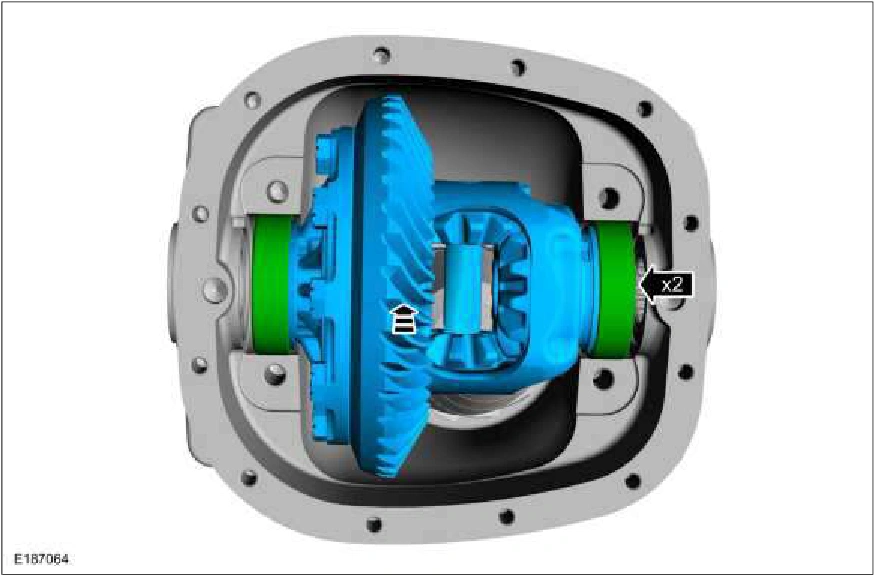

With the dial indicator removed, install the differential carrier and the differential carrier bearing cups.
5. Install the RH ring gear back lash shim.
NOTE: The differential bearing cap bolts should only be finger tight at this time.
Position the differential to the RH side of the differential housing. Install the RH differential bearing
