Differential Carrier — 2016 workshop reference 2715

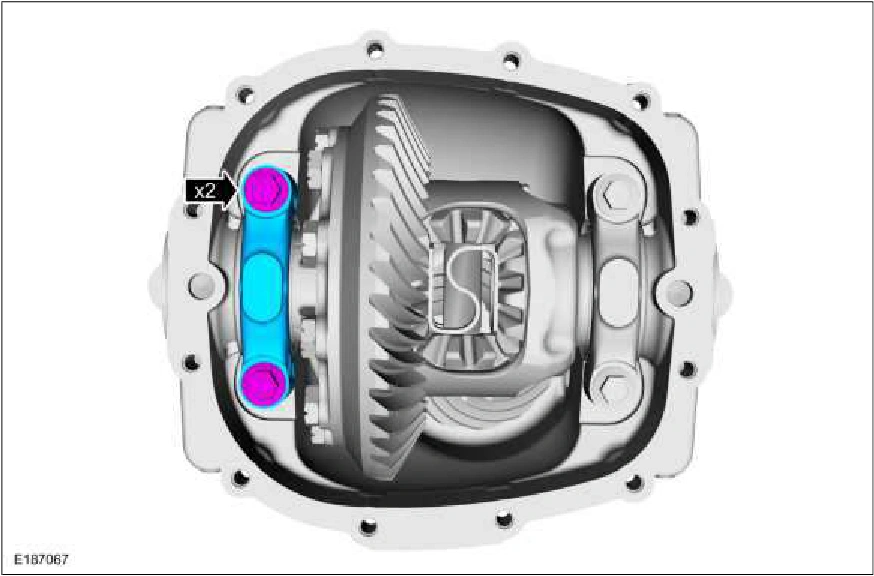

Differential Carrier — original illustration 1, reference 2715Original colors & callouts · Select to enlarge

8. Tighten the differential bearing cap bolts. Torque : 71 lb.ft (96 Nm)

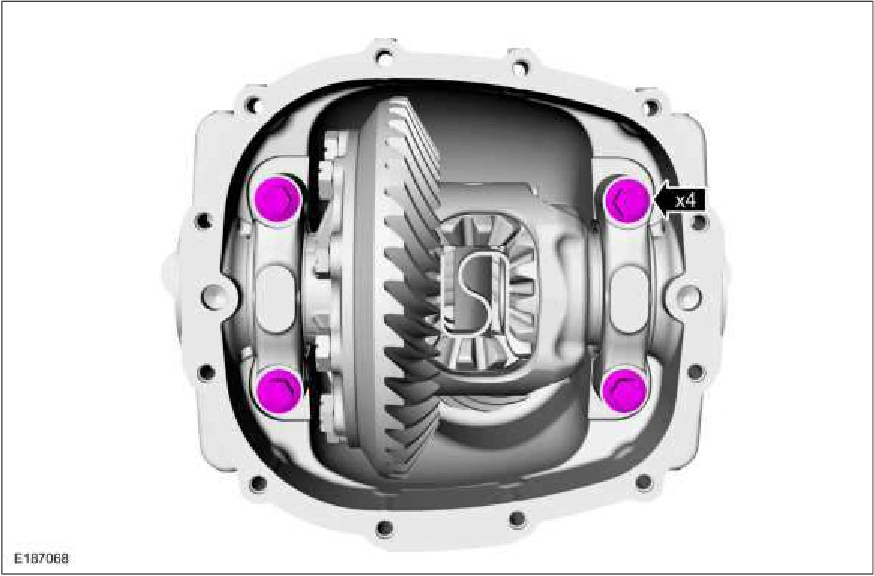

Differential Carrier — original illustration 2, reference 2715Original colors & callouts · Select to enlarge

9. Check the ring gear backlash. Refer to: Ring Gear Backlash Adjustment (205-02 Rear Drive Axle/Differential, General Procedures).

10. Remove the differential carrier from the holding fixture. Use Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission.
