Differential Fluid Temperature Sensor

205-02 Rear Drive Axle/Differential 2016 Mustang

Removal and Installation Procedure revision date: 07/29/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

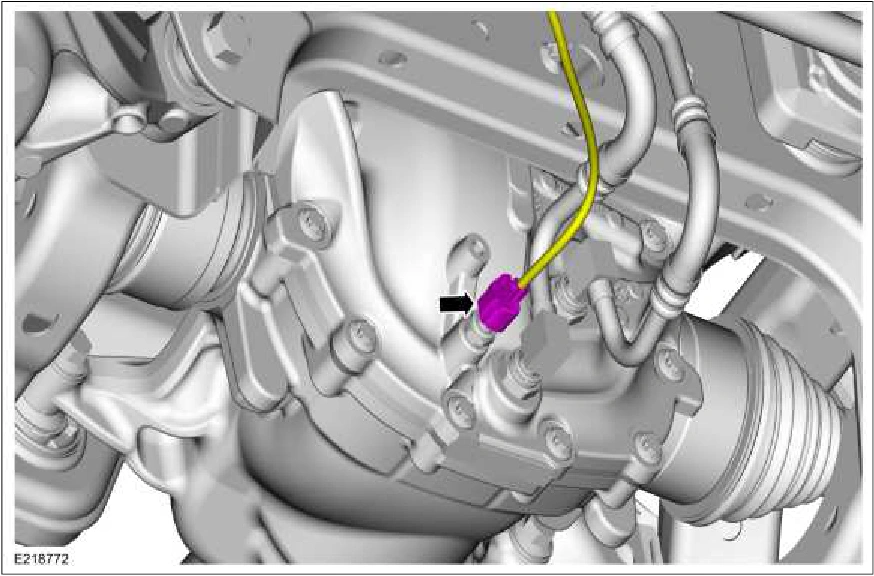

1. Disconnect the differential fluid temperature sensor connector.

Differential Fluid Temperature Sensor — original illustration 1, reference 2717Original colors & callouts · Select to enlarge

2. Remove and discard the differential temperature sensor. Torque : 89 lb.in (10 Nm)

Source reference 2717
