Differential Housing Cover

205-02 Rear Drive Axle/Differential 2016 Mustang

Removal and Installation Procedure revision date: 07/29/2015

Base Part Number: 4A028

Special Tool(s) / General Equipment

Plastic Scraper

Materials

Name	Specification
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4

Removal

1. Drain the differential assembly. Refer to: Axle and Differential Draining and Filling (205-02 Rear Drive Axle/Differential, General Procedures).

2. Remove the differential assembly. Refer to: Axle Assembly (205-02 Rear Drive Axle/Differential, Removal and Installation).

3. NOTE: The differential housing cover bolts are low profile external torx. Use an EPL16 socket to remove the bolts.

Remove the differential cover bolts and the differential cover.

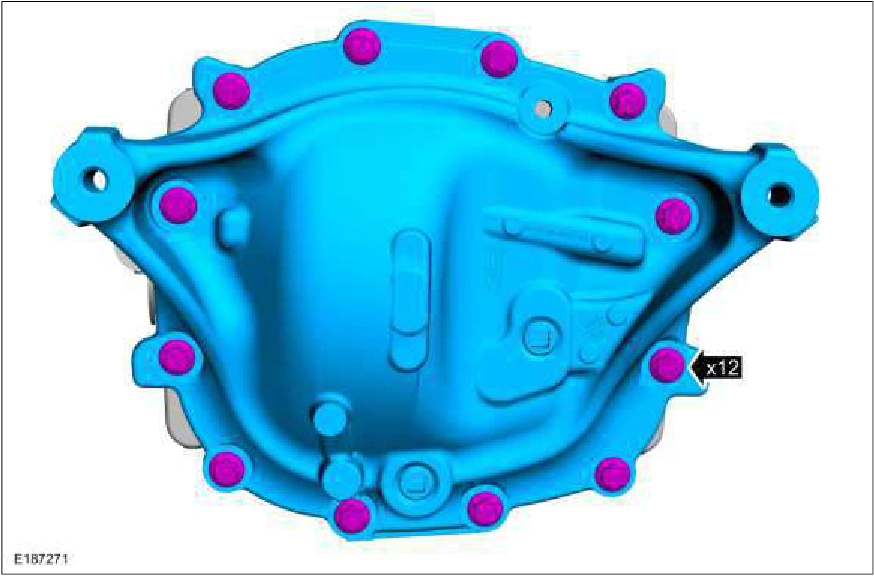

Differential Housing Cover — original illustration 1, reference 2719Original colors & callouts · Select to enlarge

Installation

1. Clean the differential cover and differential housing mating surfaces. Refer to: RTV Sealing Surface Cleaning and Preparation (303-00 Engine System - General Information, General Procedures).
