Differential Housing Cover — 2016 workshop reference 2720

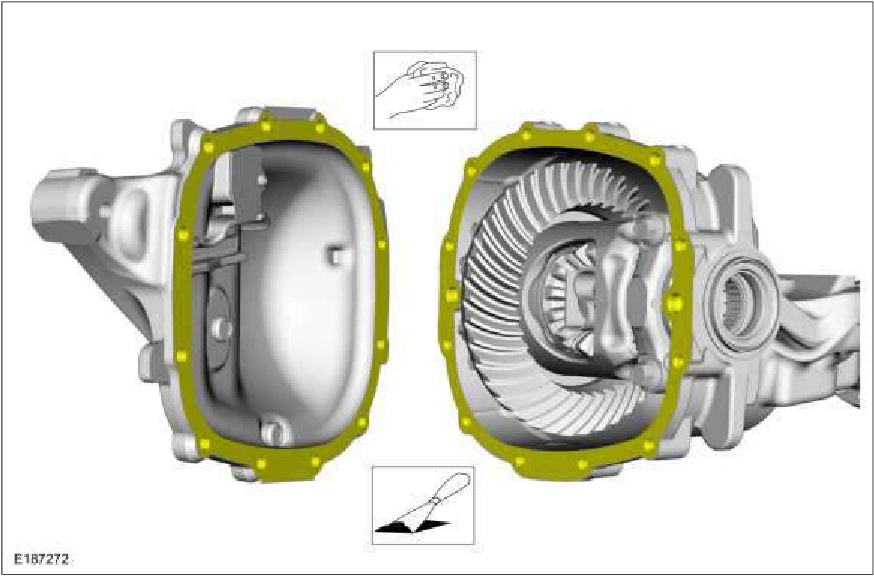

Use the General Equipment: Plastic Scraper

Differential Housing Cover — original illustration 1, reference 2720Original colors & callouts · Select to enlarge

2. NOTE: If equipped with a differential oil cooler, excessive gasket material bead may cause the differential cooling system to not properly cool the differential oil.

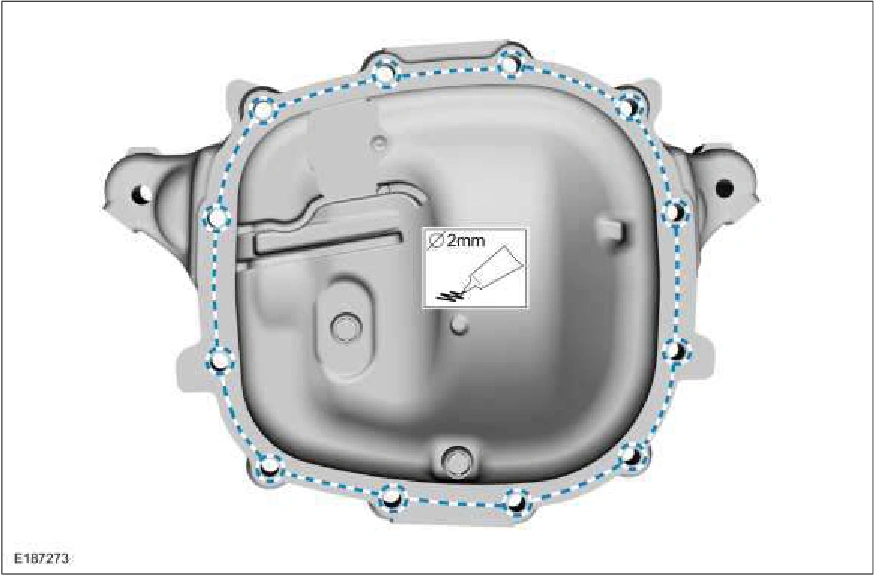

Apply the differential cover gasket material in a 2mm bead. Material : Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Differential Housing Cover — original illustration 2, reference 2720Original colors & callouts · Select to enlarge

3. Install the differential housing cover, and the differential housing cover bolts. Torque : 34 lb.ft (46 Nm)
