2016 workshop · Driveline

Drive Pinion

205-02 Rear Drive Axle-Differential

2016 MustangReference 2,723 / 6,619HTML edition
← Chapter contentsProcedure contents
Drive Pinion — original illustration 1, reference 2723Original colors & callouts · Select to enlarge

205-852 Inner Pinion Bearing Cup Installer TKIT-2006UP-FLM TKIT-2006UP-ROW

Drive Pinion — original illustration 2, reference 2723Original colors & callouts · Select to enlarge

205-937 Adapter, Pinion Aligning TKIT-2009C-F TKIT-2009C-ROW

Drive Pinion — original illustration 3, reference 2723Original colors & callouts · Select to enlarge

205-D064 (D84L-1123-A) Puller, Bearing

Rubber Mallet

Hydraulic Press

Punch

Copper Hammer

Removal

1. Remove the differential carrier. Refer to: Differential Carrier (205-02 Rear Drive Axle/Differential, Removal and Installation).

2. Remove the drive pinion seal. Refer to: Drive Pinion Seal (205-02 Rear Drive Axle/Differential, Removal and Installation).

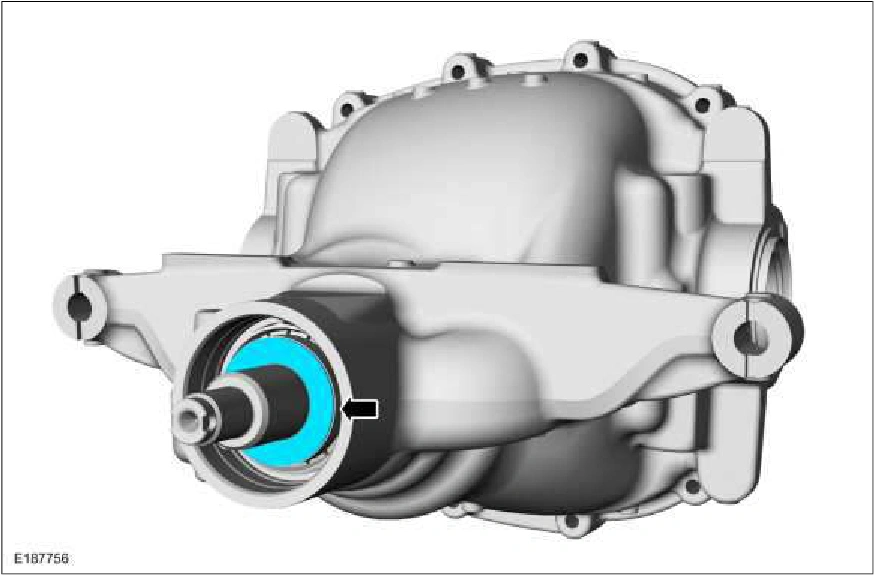

3. Remove the drive pinion outer shim.

Drive Pinion — original illustration 4, reference 2723Original colors & callouts · Select to enlarge

4. Using the special tool and a soft face mallet, tap drive pinion free of the of the drive pinion outer bearing. Use Special Service Tool: 205-229 (T85T-4209-AH) Protector, Drive Pinion Thread. Use the General Equipment: Rubber Mallet
