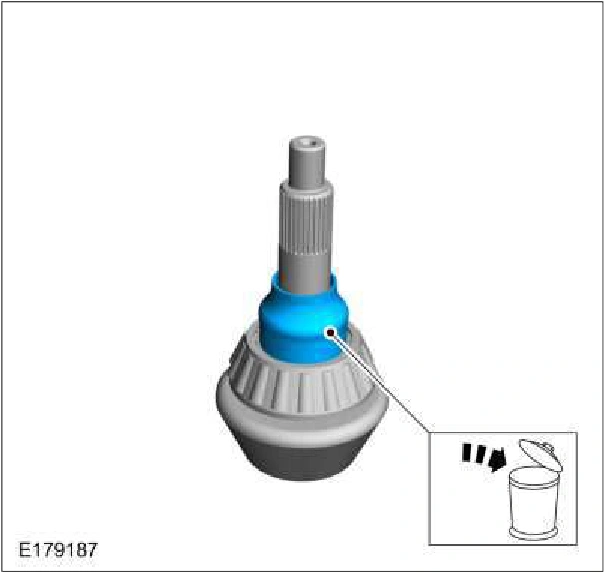

Drive Pinion — original illustration 1, reference 2725Original colors & callouts · Select to enlarge

7. Using the bearing puller and a hydraulic press, remove and discard the inner drive pinion bearing. Use Special Service Tool: 205-D064 (D84L-1123-A) Puller, Bearing. Use the General Equipment: Hydraulic Press

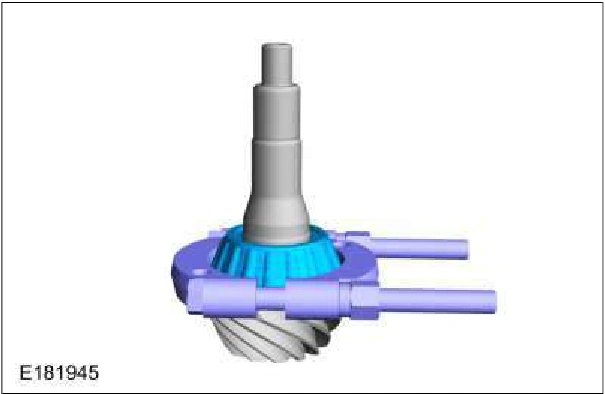

Drive Pinion — original illustration 2, reference 2725Original colors & callouts · Select to enlarge

8. Remove the inner drive pinion bearing shim.
