Drive Pinion — 2016 workshop reference 2724

Drive Pinion — original illustration 1, reference 2724Original colors & callouts · Select to enlarge

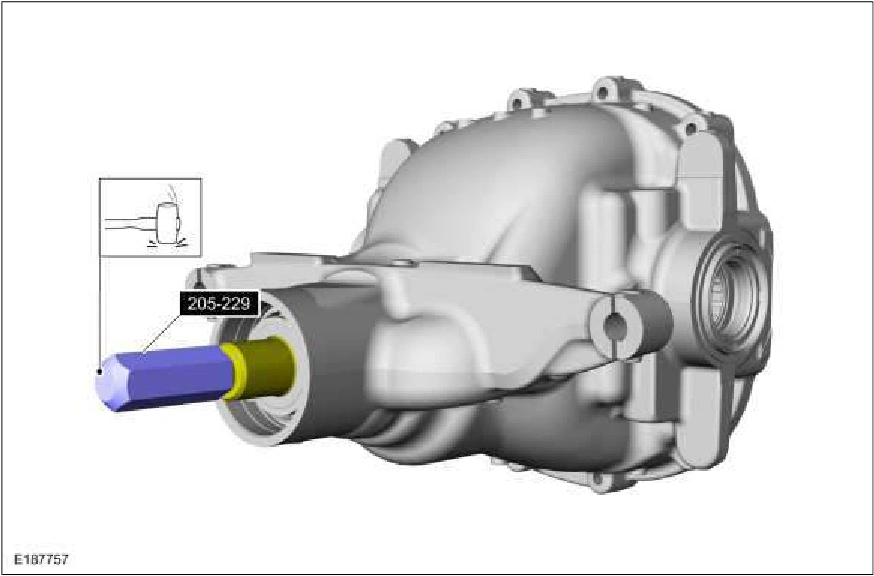

5. Remove the drive pinion and remove and discard the drive pinion outer bearing.

Drive Pinion — original illustration 2, reference 2724Original colors & callouts · Select to enlarge

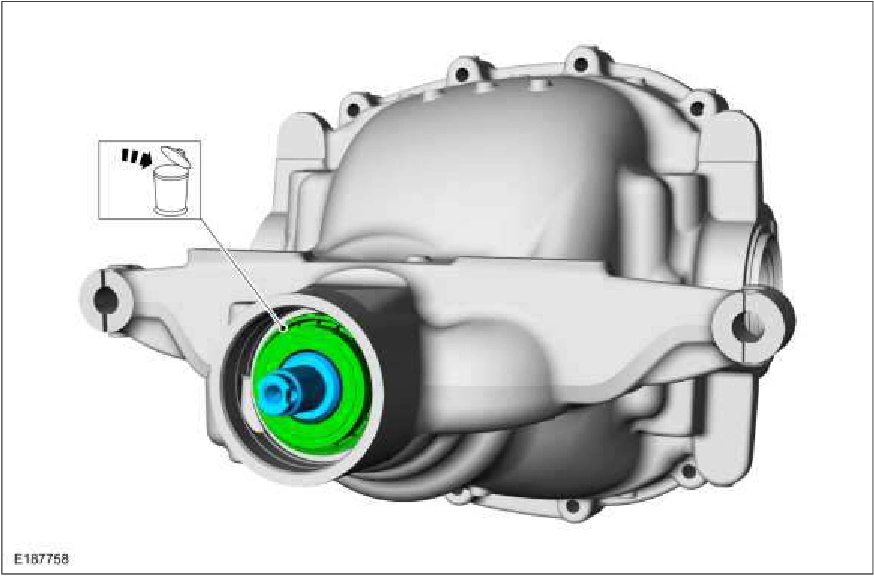

6. Remove and discard the drive pinion collapsible spacer.

Source reference 2724
