Drive Pinion

205-02 Rear Drive Axle-Differential

2016 MustangReference 2,726 / 6,619HTML edition
← Chapter contentsProcedure contents

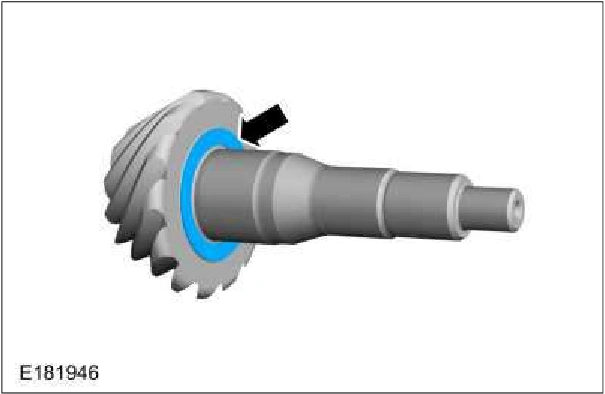

Drive Pinion — original illustration 1, reference 2726Original colors & callouts · Select to enlarge

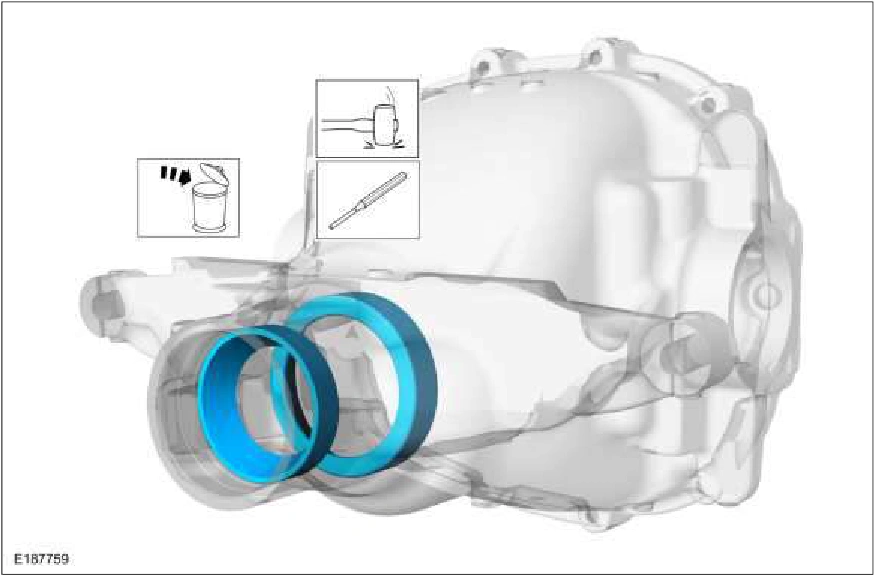

9. Using the general equipment, remove and discard the drive pinion bearing cups. Use the General Equipment: Punch Use the General Equipment: Copper Hammer

Drive Pinion — original illustration 2, reference 2726Original colors & callouts · Select to enlarge

Installation

1. NOTE: Make sure the drive pinion bearing cups are seated correctly or damage to the components may occur.

Using the special tools, install the new inner and new outer drive pinion bearing cups. Use Special Service Tool: 205-024 (T67P-4616-A) Installer, Drive Pinion Bearing Cup. , 205-852 Inner Pinion Bearing Cup Installer. , 205-387 (T97T-4628-A) Installer, Rear Axle Bearing Cup.
