Drive Pinion

205-02 Rear Drive Axle-Differential

2016 MustangReference 2,729 / 6,619HTML edition
← Chapter contentsProcedure contents

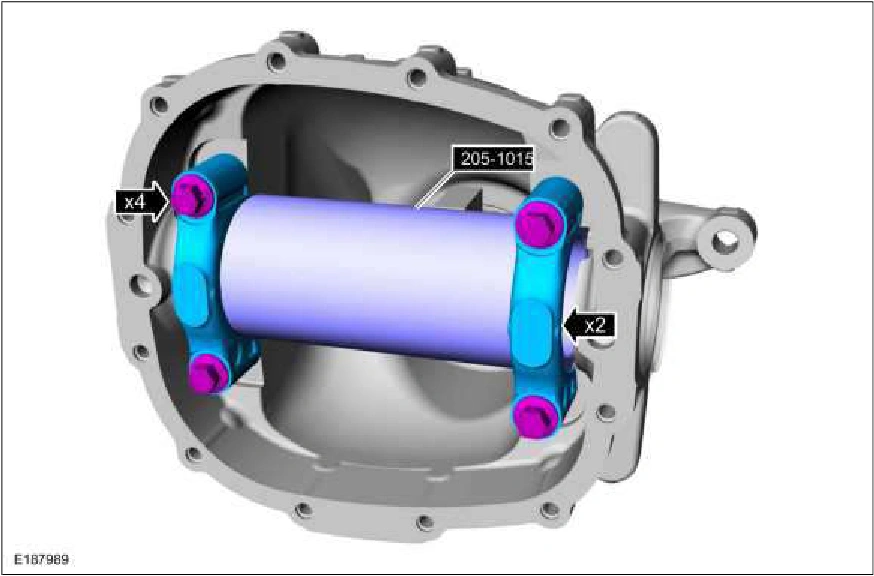

Drive Pinion — original illustration 1, reference 2729Original colors & callouts · Select to enlarge

6. NOTE: Drive pinion bearing adjustment shims must be flat and clean.

NOTE: A slight drag should be felt for correct drive pinion bearing adjustment shim selection. Do not attempt to force the drive pinion bearing adjustment shim between the gauge block and the gauge tube. This will minimize selection of a drive pinion bearing adjustment shim thicker than required, which results in a deep tooth contact in the final assembly of integral axle assemblies.

Use a drive pinion bearing adjustment shim as a gauge for drive pinion bearing adjustment shim selection.

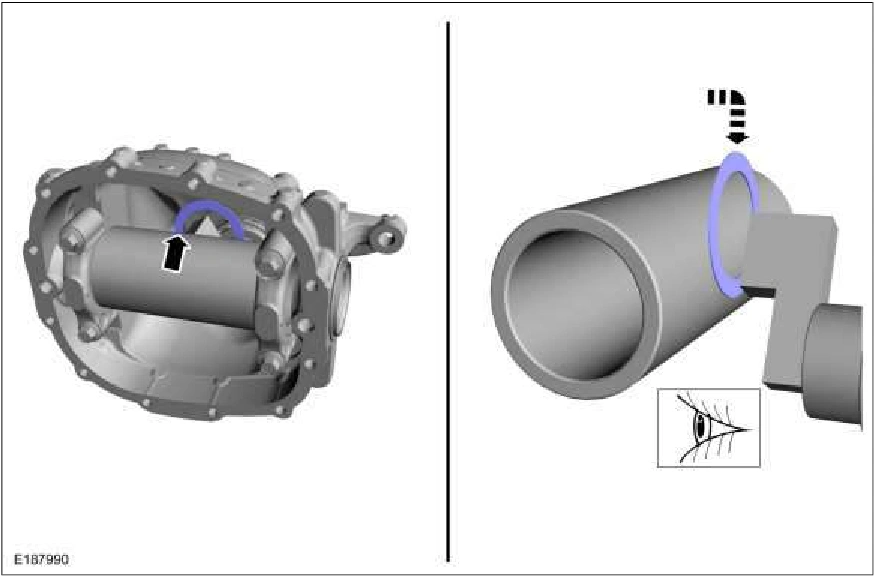

Drive Pinion — original illustration 2, reference 2729Original colors & callouts · Select to enlarge

7. NOTE: The differential bearing caps need to stay in the correct orientation for installation.

Remove the differential bearing cap bolts and differential bearing caps, remove the special tools. Use Special Service Tool: 205-1015 Gauge Tube.
