Drive Pinion

205-02 Rear Drive Axle-Differential

2016 MustangReference 2,731 / 6,619HTML edition
← Chapter contentsProcedure contents

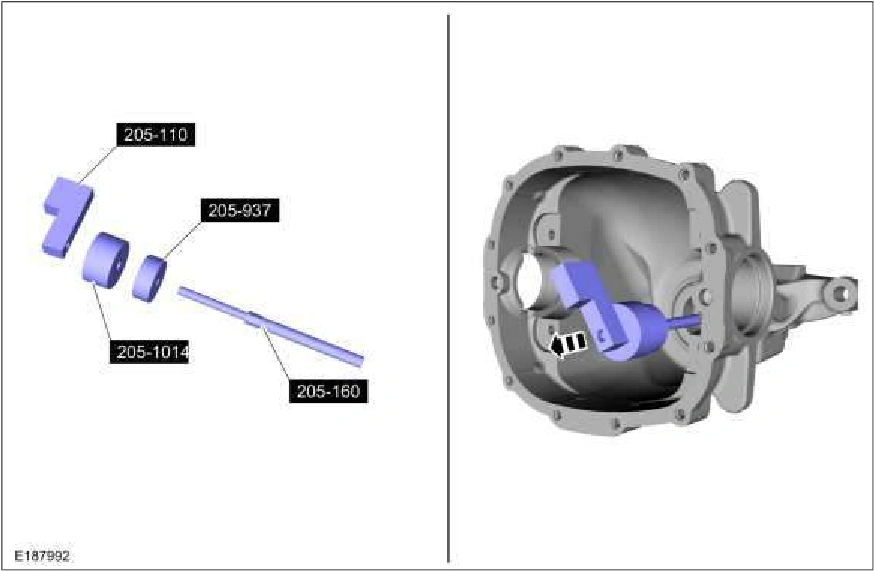

Drive Pinion — original illustration 1, reference 2731Original colors & callouts · Select to enlarge

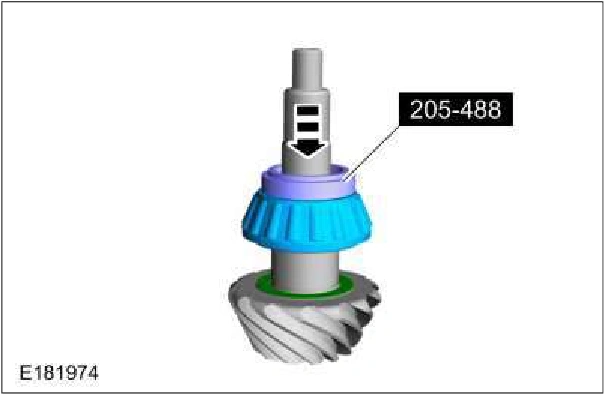

10. Install the drive pinion inner bearing and selected drive pinion bearing adjustment shim until they are firmly seated on the drive pinion. Use Special Service Tool: 205-488 Installer, Drive Pinion Bearing. Use the General Equipment: Hydraulic Press

Drive Pinion — original illustration 2, reference 2731Original colors & callouts · Select to enlarge

11. Install the new drive pinion collapsible spacer.

Source reference 2731
