2016 workshop · Driveline

Drive Pinion

205-02 Rear Drive Axle-Differential

2016 MustangReference 2,732 / 6,619HTML edition
← Chapter contentsProcedure contents
Drive Pinion — original illustration 1, reference 2732Original colors & callouts · Select to enlarge

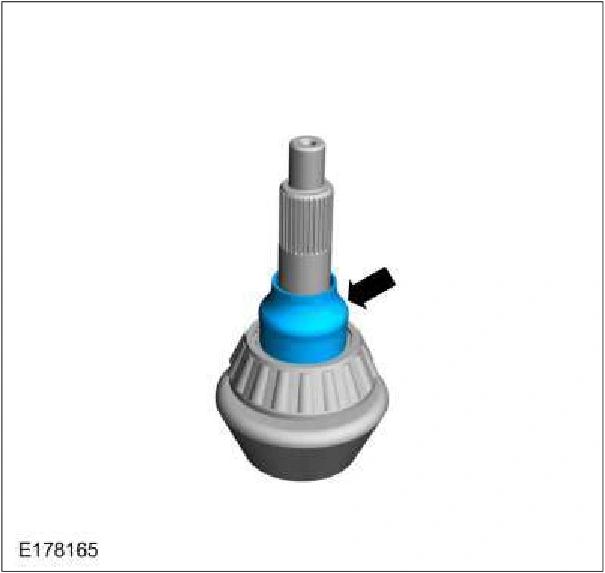

12. NOTE:

Install the new outer differential pinion bearing, outer differential pinion shim and the differential pinion.

Drive Pinion — original illustration 2, reference 2732Original colors & callouts · Select to enlarge

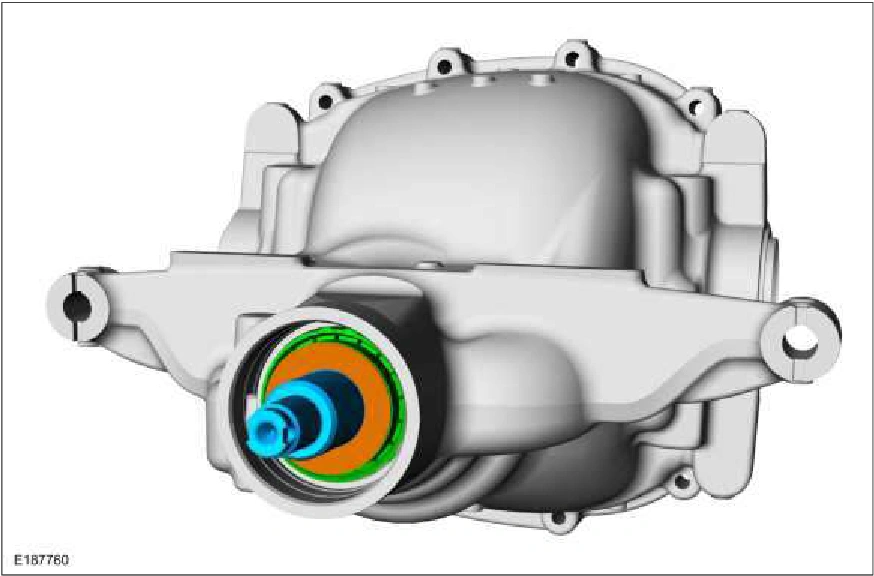

13. NOTE: When installing the drive pinion flange and pinion nut with no differential carrier installed, the drag torque (torque to turn) should be 2.5 to 3.5 Nm (23-33 in-lbs).

Install the drive pinion seal. Refer to: Drive Pinion Seal (205-02 Rear Drive Axle/Differential, Removal and Installation).

14. Install the differential carrier. Refer to: Differential Carrier (205-02 Rear Drive Axle/Differential, Removal and Installation).
