Drive Pinion Flange — 2016 workshop reference 2735

Drive Pinion Flange — original illustration 1, reference 2735Original colors & callouts · Select to enlarge

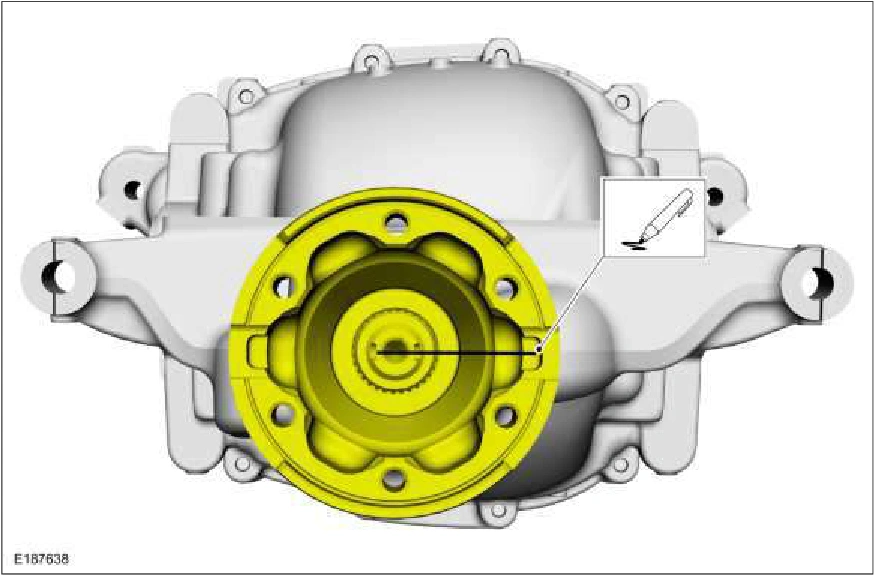

5. Mark the drive pinion flange and the drive pinion stem for reassembly.

Drive Pinion Flange — original illustration 2, reference 2735Original colors & callouts · Select to enlarge

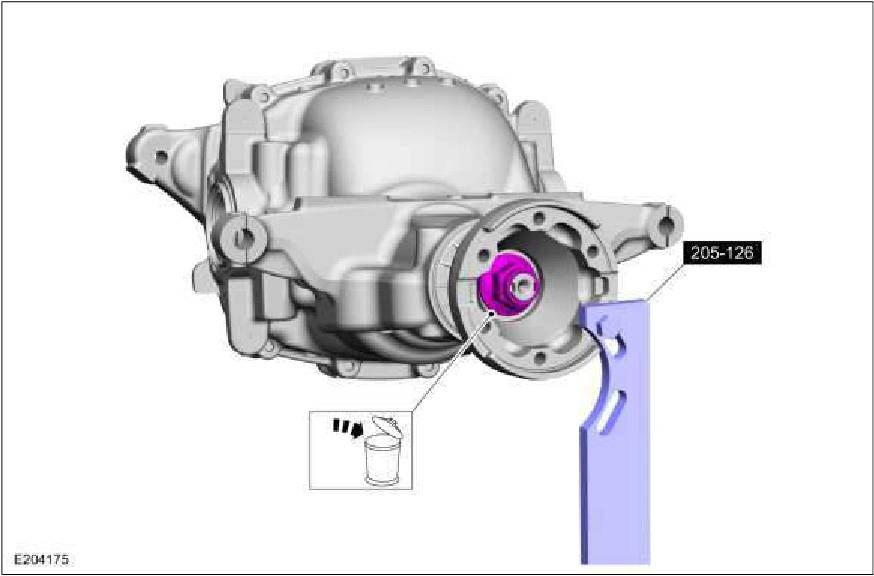

6. Using the general equipment, remove the pinion flange. Use the General Equipment: Three Leg Puller

Source reference 2735
