NOTE: Refer to the rotational torque previously recorded with the Nm (lb-in) torque wrench. Tighten the pinion nut in small increments until it is 0 .00 Nm to +0.3 Nm (0 lb-in to 3 lb-in) of the reference measurement. If 0.3 Nm (3 lb-in) is exceeded, then the collapsible spacer will be damaged and a new collapsible spacer will be required.

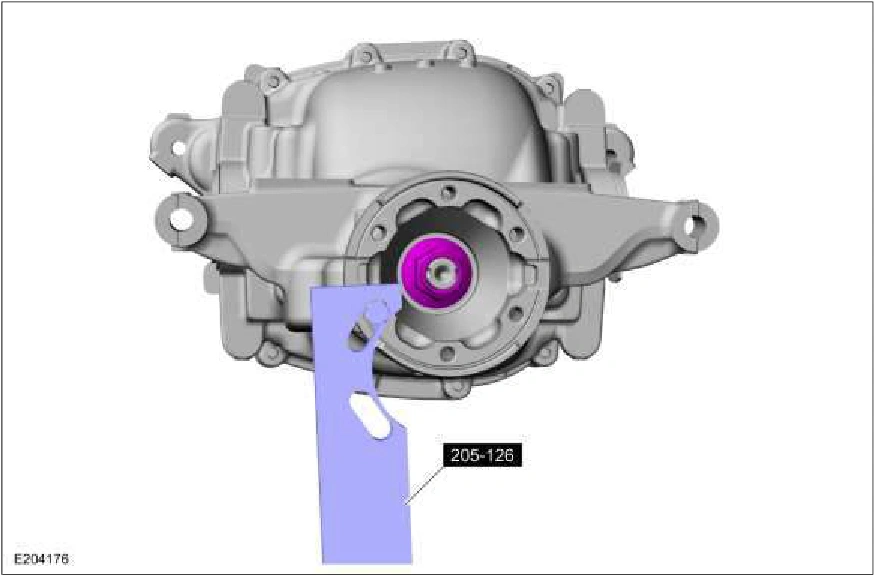

Using the special tool to hold the pinion flange, install the new pinion nut. Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.

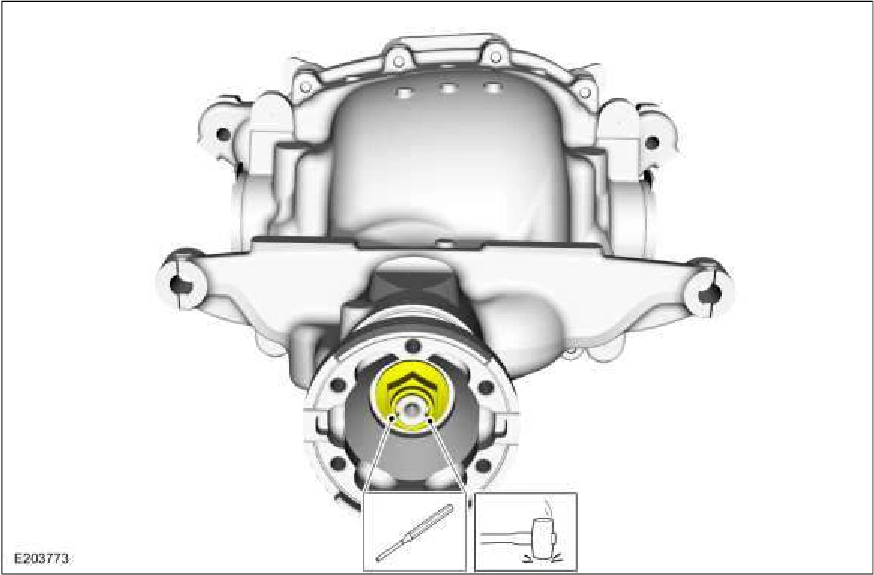

4. Using a general equipment, stake the pinion nut. Use the General Equipment: Punch Use the General Equipment: Copper Hammer
5. Install the driveshaft. Refer to: Driveshaft (205-01 Driveshaft, Removal and Installation).
