Drive Pinion Seal

205-02 Rear Drive Axle/Differential 2016 Mustang

Removal and Installation Procedure revision date: 01/13/2015

Base Part Number: 3N134

Special Tool(s) / General Equipment

205-208 (T83T-4676-A) Installer, Drive Pinion Oil Seal TKIT-1983-F TKIT-1983-FLM TKIT-1983-FX

Drive Pinion Seal — original illustration 1, reference 2740Original colors & callouts · Select to enlarge

Flat Headed Screw Driver

Removal

1. Remove the drive pinion flange. Refer to: Drive Pinion Flange (205-02 Rear Drive Axle/Differential, Removal and Installation).

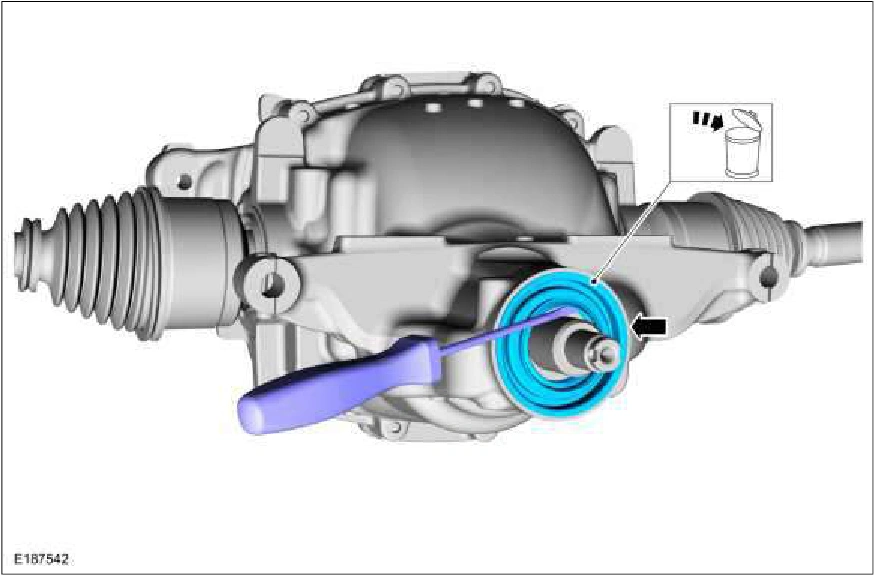

2. Using a flat blade screwdriver, remove and discard the drive pinion seal. Use the General Equipment: Flat Headed Screw Driver

Drive Pinion Seal — original illustration 2, reference 2740Original colors & callouts · Select to enlarge

Installation

1. Using the special tool, install the drive pinion seal. Use Special Service Tool: 205-208 (T83T-4676-A) Installer, Drive Pinion Oil Seal.
