Oil Cooler

205-02 Rear Drive Axle/Differential 2016 Mustang

Removal and Installation Procedure revision date: 07/28/2015

Removal

NOTE: Removal steps may contain installation directions.

1. Drain the differential fluid. Refer to: Axle and Differential Draining and Filling (205-02 Rear Drive Axle/Differential, General Procedures).

Step 2

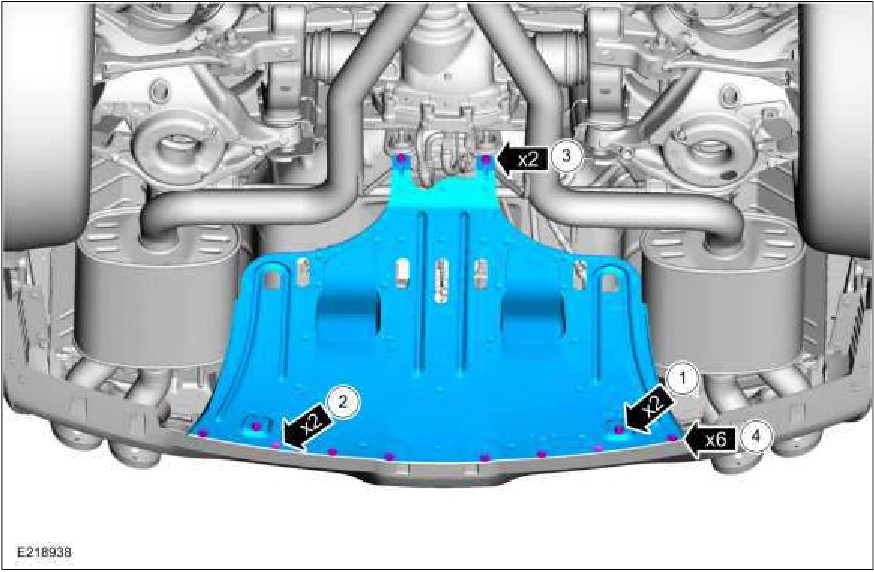

1. Remove the rear underbody shield rear bolts. Torque : 80 lb.in (9 Nm)

2. Remove the rear under body shield push pin retainers.

3. Remove the rear underbody shield front bolts. Torque : 22 lb.ft (30 Nm)

4. Remove the rear under body shield rivet style push pin retainers.

Oil Cooler — original illustration 1, reference 2742Original colors & callouts · Select to enlarge

Step 3

1. Remove the differential cooler line clip retainers.

2. Remove the differential cooler lines from the differential cooler and position them aside.

Source reference 2742
