Oil Cooler

205-02 Rear Drive Axle-Differential

2016 MustangReference 2,743 / 6,619HTML edition
← Chapter contentsProcedure contents

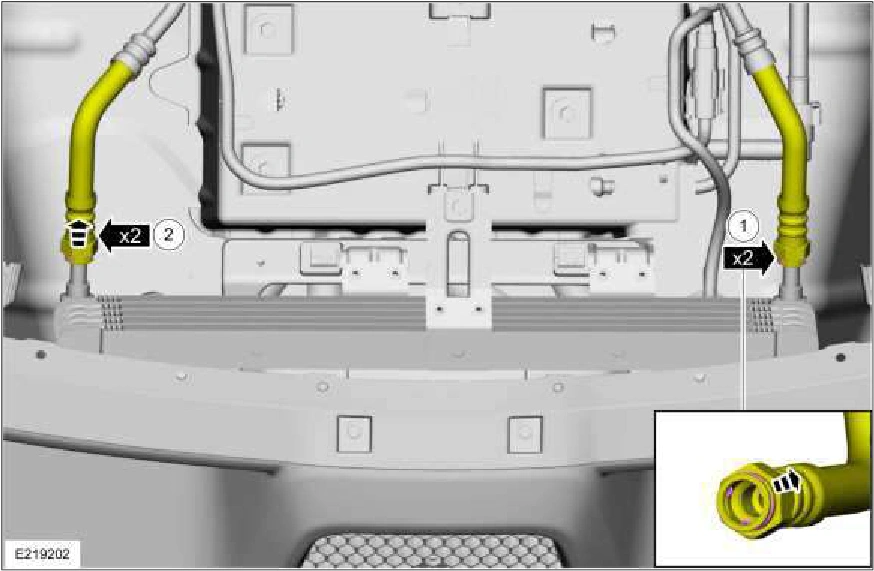

Oil Cooler — original illustration 1, reference 2743Original colors & callouts · Select to enlarge

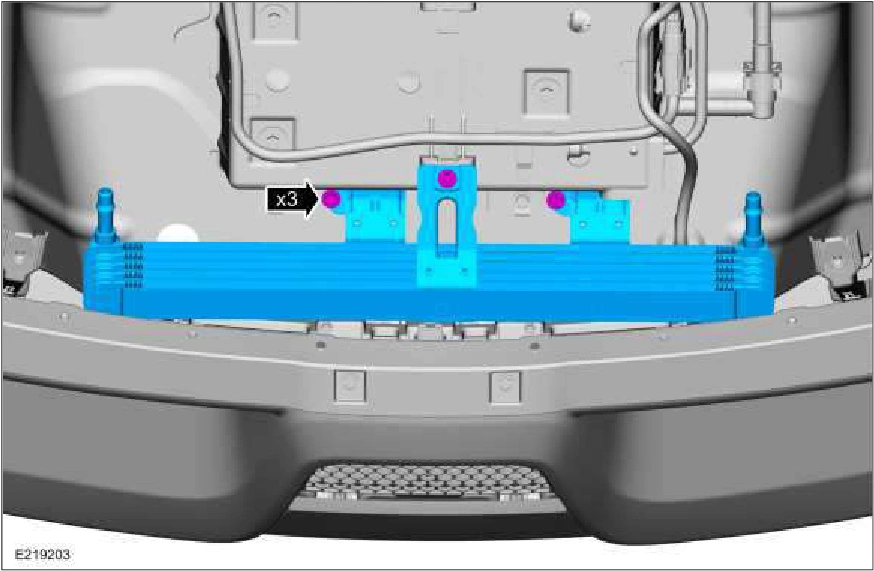

4. Remove the differential cooler bolts and the differential cooler. Torque : 97 lb.in (11 Nm)

Oil Cooler — original illustration 2, reference 2743Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

2. Fill the differential fluid. Refer to: Axle and Differential Draining and Filling (205-02 Rear Drive Axle/Differential, General Procedures).
