Oil Pump — 2016 workshop reference 2745

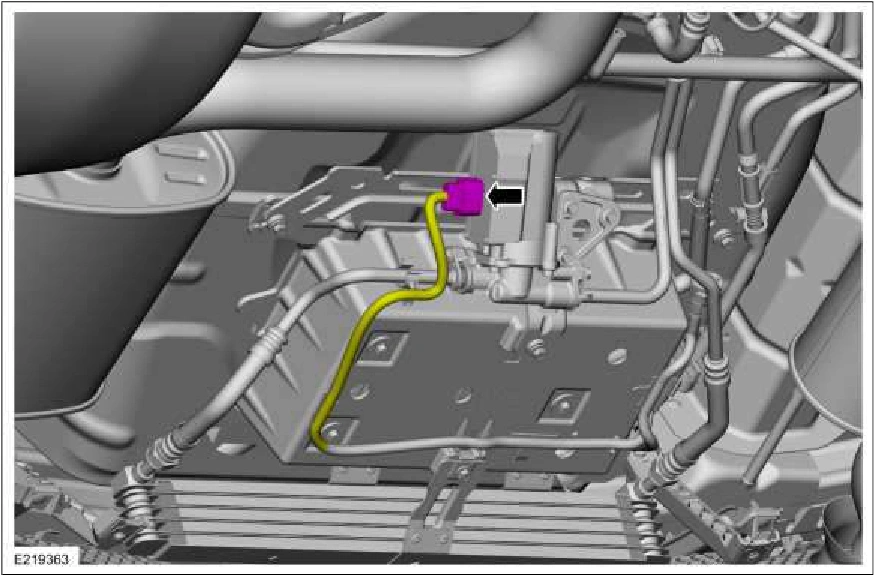

Oil Pump — original illustration 1, reference 2745Original colors & callouts · Select to enlarge

4. Remove the differential oil pump line bolts and position the differential oil pump lines aside. Torque : 80 lb.in (9 Nm)

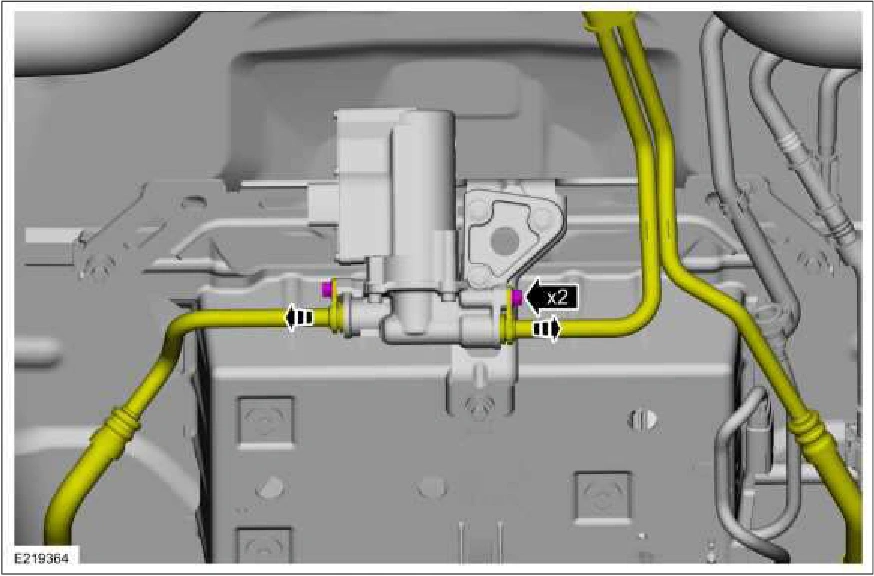

Oil Pump — original illustration 2, reference 2745Original colors & callouts · Select to enlarge

5. Remove the differential oil pump bolts and the differential oil pump. Torque : 97 lb.in (11 Nm)
