Rear Halfshaft Seal — 2016 workshop reference 2748

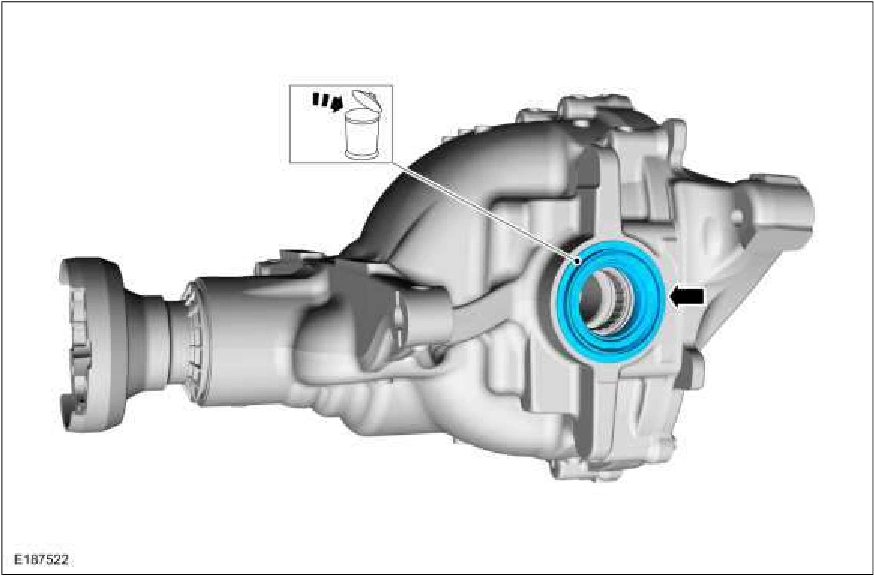

Rear Halfshaft Seal — original illustration 1, reference 2748Original colors & callouts · Select to enlarge

3. Remove and discard the rear halfshaft pilot bearing. Use Special Service Tool: 308-047 (T77F-1102-A) Remover, Bearing Cup. Use the General Equipment: Slide Hammer

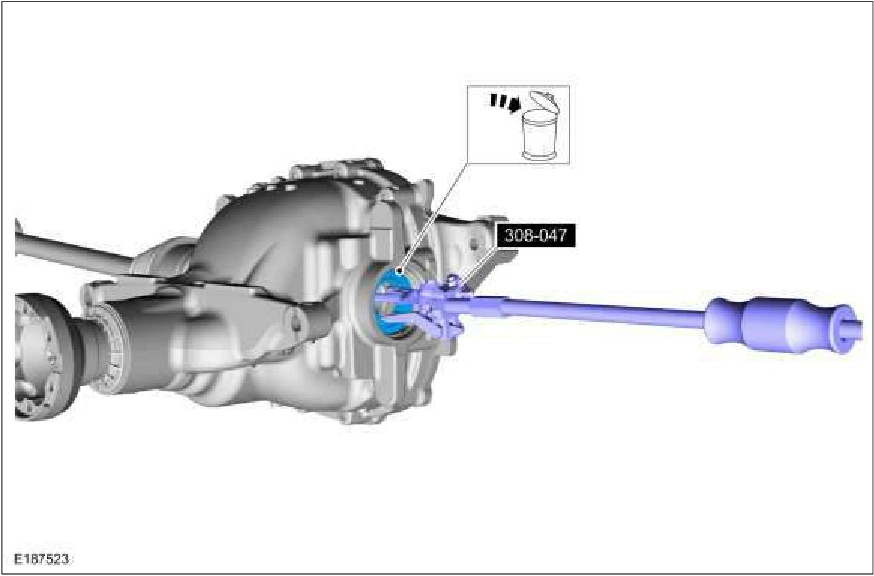

Rear Halfshaft Seal — original illustration 2, reference 2748Original colors & callouts · Select to enlarge

Installation

1. Install the new rear halfshaft pilot bearing. Use Special Service Tool: 205-907 Handle, 32 Driver. , 205-504 Installer, Halfshaft Pilot Bearing. , 205-1013 Installer, Rear Axle pilot bearing.

Source reference 2748
