Rear Halfshaft Seal — 2016 workshop reference 2749

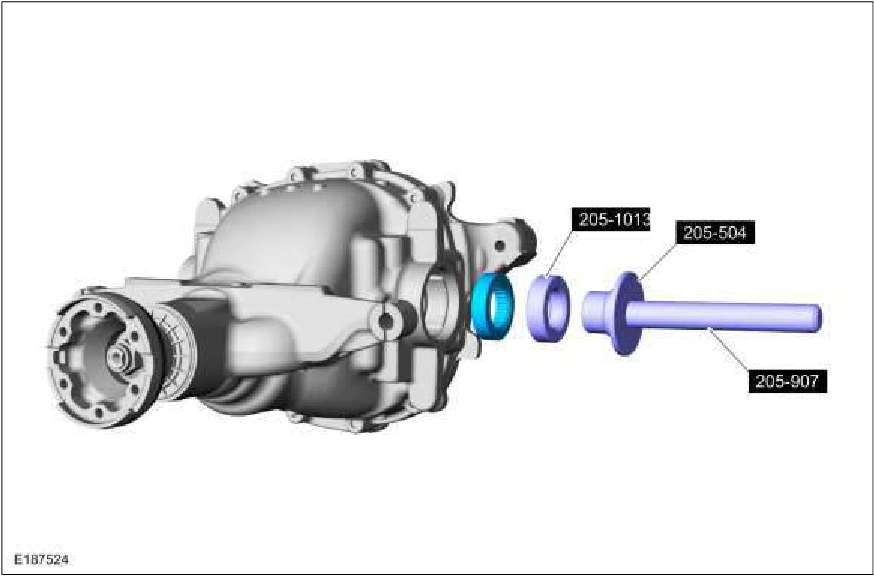

Rear Halfshaft Seal — original illustration 1, reference 2749Original colors & callouts · Select to enlarge

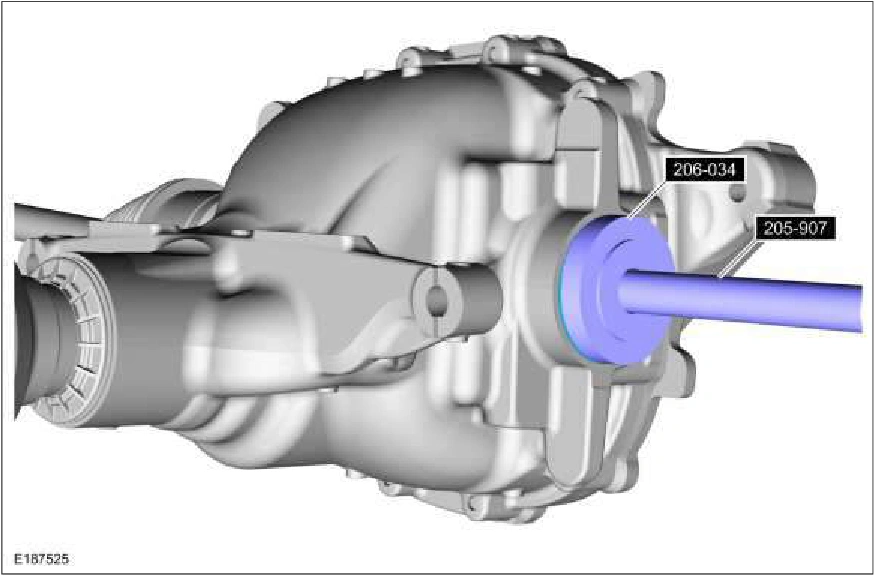

2. Install the new rear half halfshaft seal. Use Special Service Tool: 206-034 (T88P-20202-B) Installer, Wheel Speed Sensor Ring. , 205-907 Handle, 32 Driver.

Rear Halfshaft Seal — original illustration 2, reference 2749Original colors & callouts · Select to enlarge

3. Install the rear halfshaft. Refer to: Rear Halfshaft (205-05 Rear Drive Halfshafts, Removal and Installation).

4. Check the differential fluid level. Refer to: Differential Fluid Level Check (205-02 Rear Drive Axle/Differential, General Procedures).
