Differential Carrier — 2016 workshop reference 2752

4. Using the brass punch and a soft face hammer, remove the ring gear. Use the General Equipment: Punch Use the General Equipment: Copper Hammer

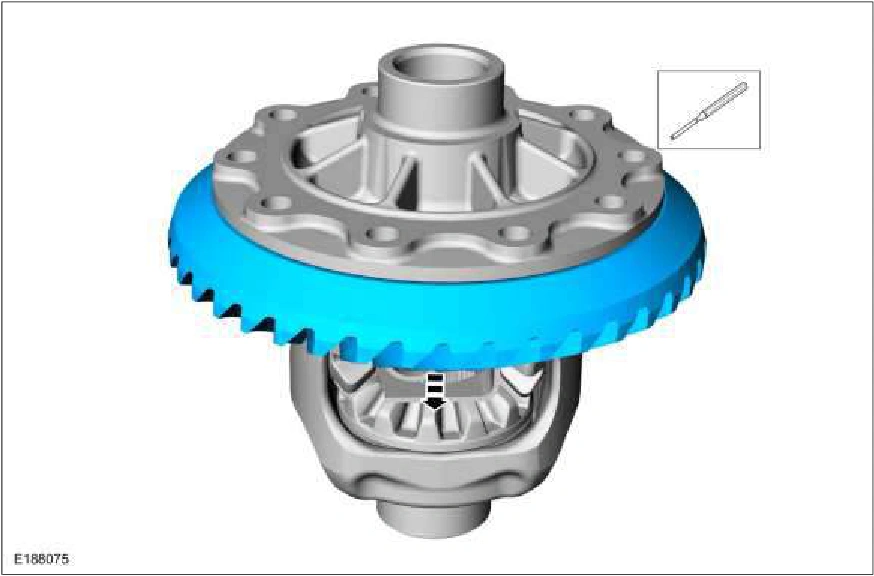

Differential Carrier — original illustration 1, reference 2752Original colors & callouts · Select to enlarge

Step 5

1. Remove and discard the differential pinion shaft lock bolt.

2. Remove the differential pinion shaft.

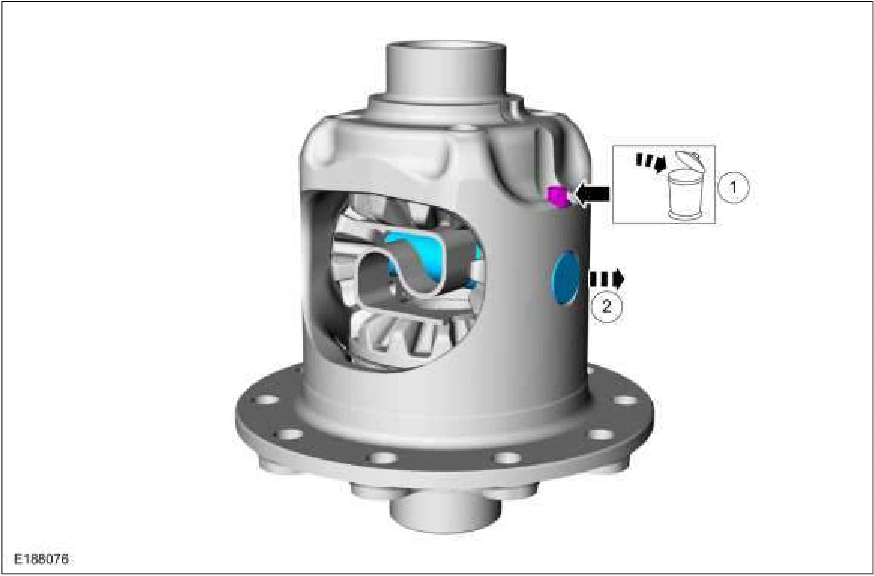

Differential Carrier — original illustration 2, reference 2752Original colors & callouts · Select to enlarge

6. NOTE: Due to the spring tension, care must be used when removing the differential s-spring.

Remove the differential s-spring.

Source reference 2752
