Differential Carrier — 2016 workshop reference 2754

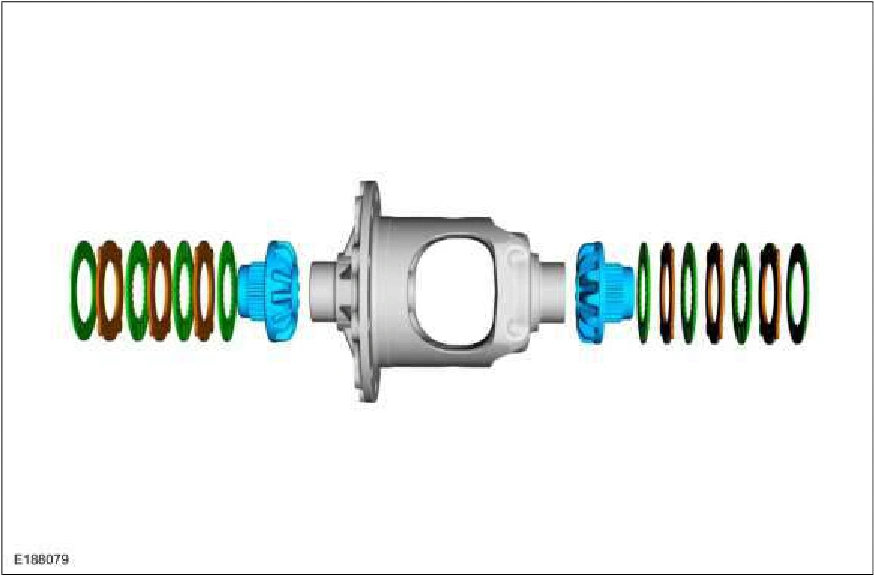

Differential Carrier — original illustration 1, reference 2754Original colors & callouts · Select to enlarge

ASSEMBLY

1. Lubricate the differential steel clutch plates. Soak the differential friction plates for no less than 15 minutes. Material : Motorcraft® Additive Friction Modifier (U.S.) / XL-3 (U.S.) (EST-M2C118-A)

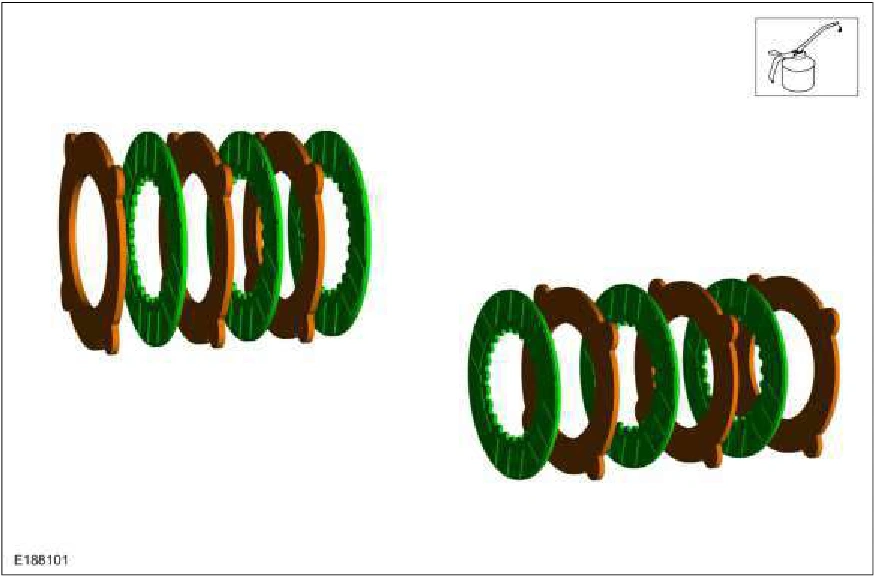

Differential Carrier — original illustration 2, reference 2754Original colors & callouts · Select to enlarge

2. NOTE: Do not mix the clutch plates, clutch discs or shim from one side with the other.

Assemble the differential clutch packs on their respective differential side gear.

Source reference 2754
