2016 workshop · Driveline

Differential Carrier

205-02 Rear Drive Axle-Differential

2016 MustangReference 2,757 / 6,619HTML edition
← Chapter contentsProcedure contents
Differential Carrier — original illustration 1, reference 2757Original colors & callouts · Select to enlarge

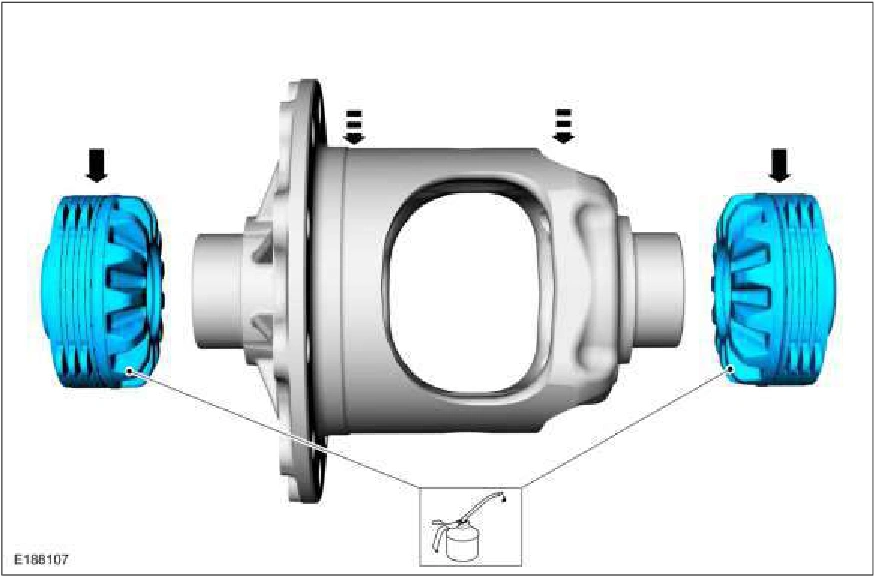

7. Lube and install the differential side gear assemblies in the differential case. Material : Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Differential Carrier — original illustration 2, reference 2757Original colors & callouts · Select to enlarge

8. Lube and install the differential pinion gear and differential pinion thrust washer assemblies in the differential case. Material : Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Source reference 2757
