Differential Carrier — 2016 workshop reference 2758

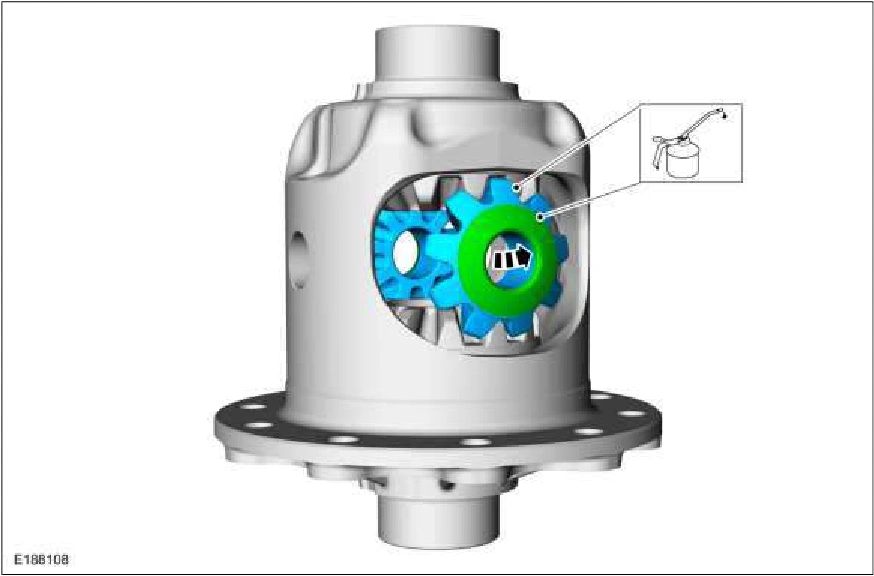

Differential Carrier — original illustration 1, reference 2758Original colors & callouts · Select to enlarge

9. NOTE: The s-spring has tension and may need to be tapped in with a soft faced mallet.

Install the differential S-spring. Use the General Equipment: Rubber Mallet

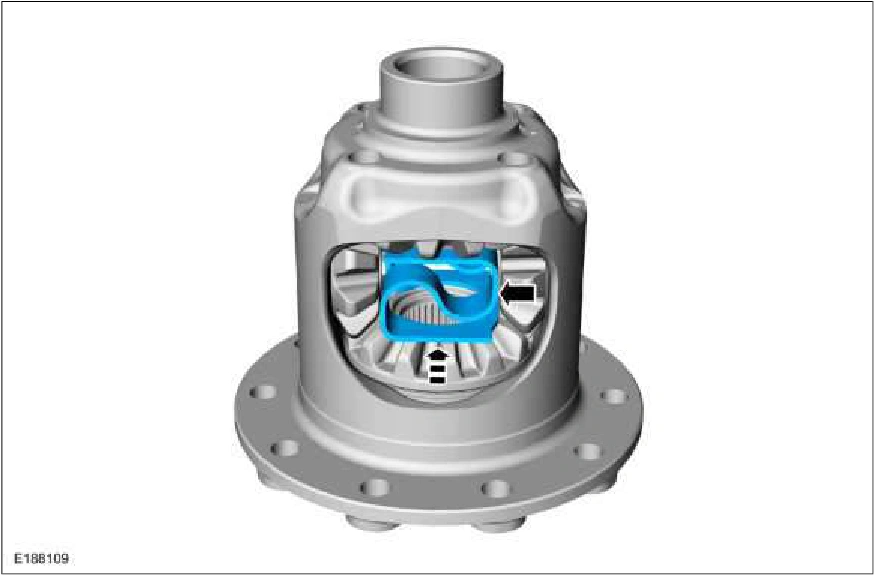

Differential Carrier — original illustration 2, reference 2758Original colors & callouts · Select to enlarge

10. Install the differential pinion shaft.

Install the new differential pinion shaft bolt. Torque : 25 lb.ft (34 Nm)

Source reference 2758
