2016 workshop · Driveline

Differential Carrier

205-02 Rear Drive Axle-Differential

2016 MustangReference 2,759 / 6,619HTML edition
← Chapter contentsProcedure contents
Differential Carrier — original illustration 1, reference 2759Original colors & callouts · Select to enlarge

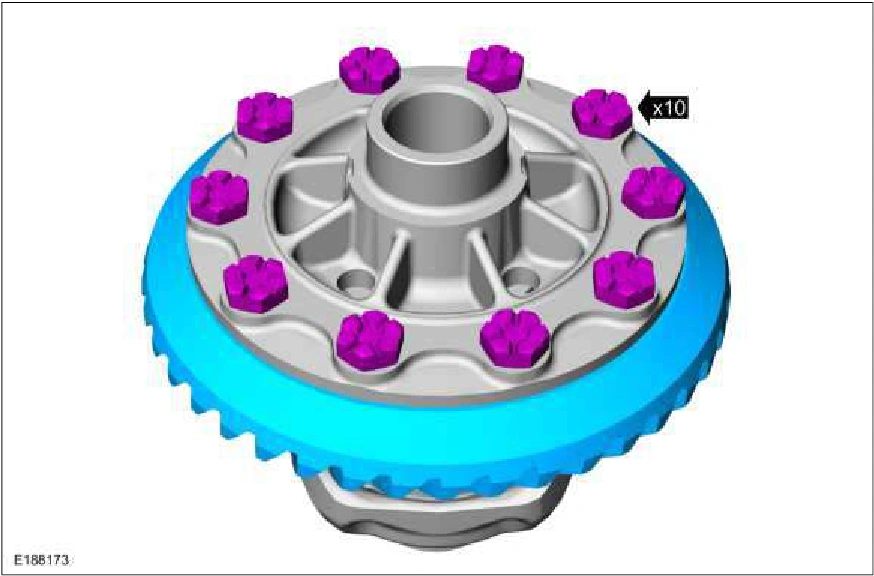

11. NOTE: Tighten the ring gear bolts in a cross pattern.

Install the ring gear and the new ring gear bolts. Torque : 100 lb.ft (135 Nm)

Differential Carrier — original illustration 2, reference 2759Original colors & callouts · Select to enlarge

12. Using the special tools, install the new differential bearings. Use Special Service Tool: 205-153 (T80T-4000-W) Handle. , 205-1016 Installer, Differential Bearing.

Source reference 2759
