Differential Carrier — 2016 workshop reference 2760

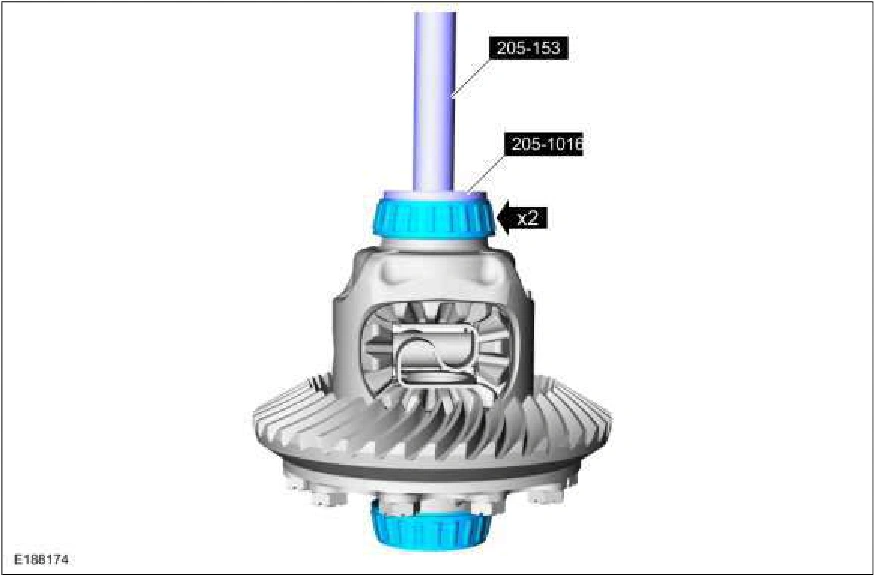

Differential Carrier — original illustration 1, reference 2760Original colors & callouts · Select to enlarge

13. NOTE: The initial minimum break-away torque, if original clutch plates are used, must be within the specification below. The minimum rotating torque required to keep the differential side gear turning with new clutch plates may vary.

Using the special tool, check the torque required to rotate one differential side gear. Use Special Service Tool: 205-384 (T97T-4205-A) Gauge, Differential (Traction Lock). Use the General Equipment: Vise Torque : 20 lb.ft (27 Nm)

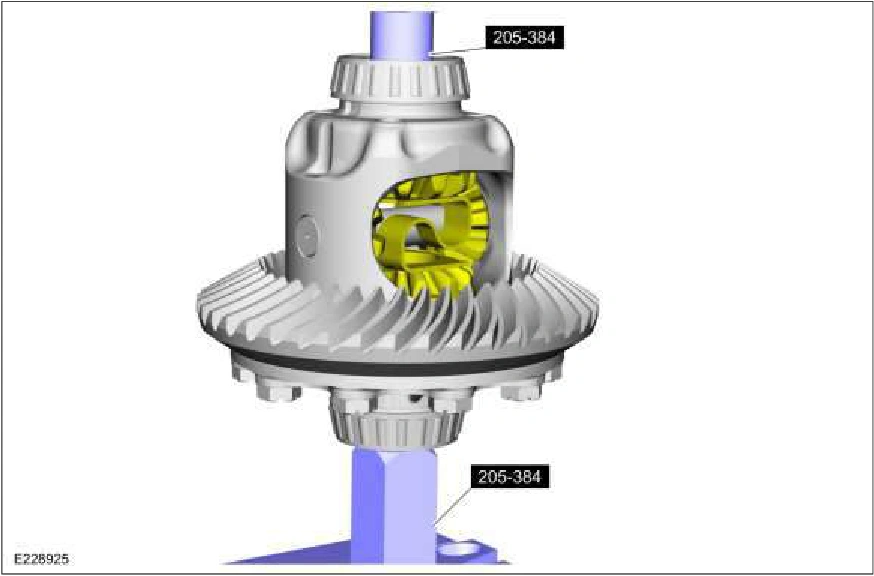

Differential Carrier — original illustration 2, reference 2760Original colors & callouts · Select to enlarge

14. Install the differential carrier. Refer to: Differential Carrier (205-02 Rear Drive Axle/Differential, Removal and Installation).
