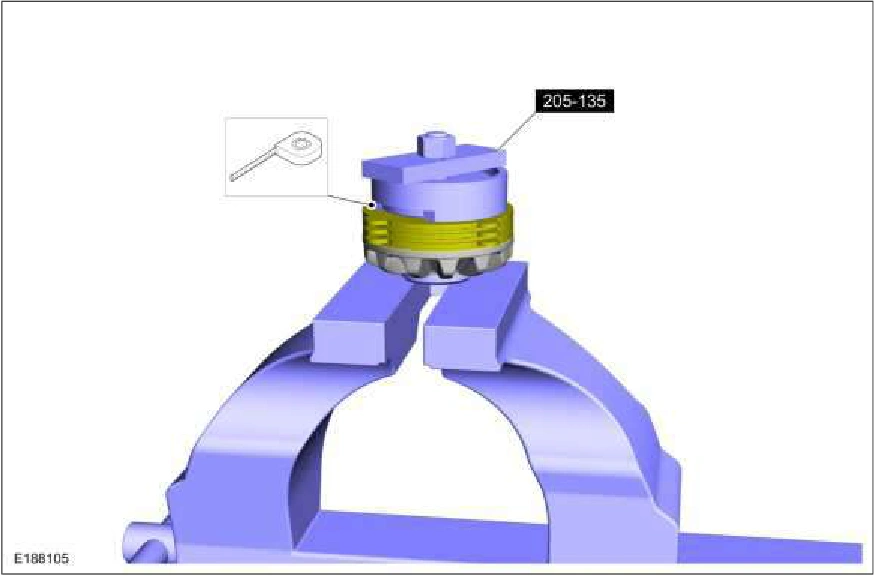

5. Select and insert the thickest feeler gauge blade that will enter between the tool and the differential clutch pack. Use the differential clutch pack chart to determine the correct thickness clutch shim to use. Refer to: Specifications (205-02 Rear Drive Axle/Differential, Specifications). Use Special Service Tool: 205-135 Gauge, Differential Clutch. Use the General Equipment: Vise Use the General Equipment: Feeler Gauge Torque : 59 lb.in (6.7 Nm)
6. NOTE: Do not use more than 2 shims per side.
With the special tool removed, Install the selective shim on the differential side gear and clutch pack assembly.
