Differential Carrier

205-02 Rear Drive Axle-Differential

2016 MustangReference 2,755 / 6,619HTML edition
← Chapter contentsProcedure contents

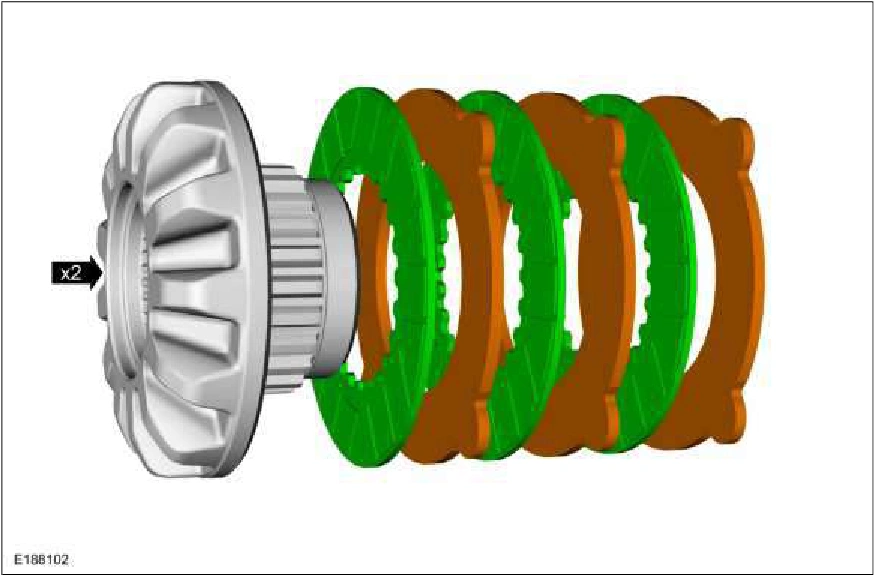

Differential Carrier — original illustration 1, reference 2755Original colors & callouts · Select to enlarge

3. Place the base portion of the Differential Clutch Gauge in a vise. Install the differential side gear and differential clutch pack (without the shim and spacer) on the tool. Use Special Service Tool: 205-135 Gauge, Differential Clutch. Use the General Equipment: Vise

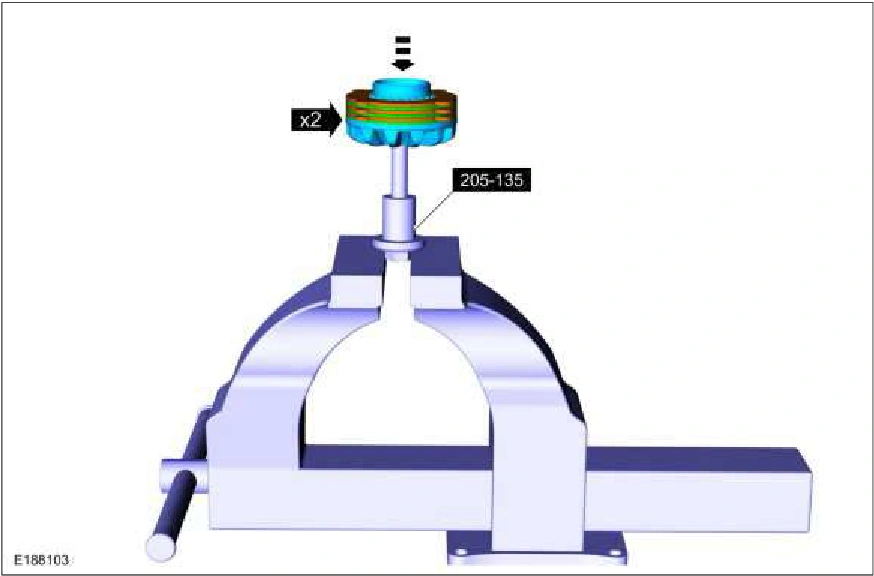

Differential Carrier — original illustration 2, reference 2755Original colors & callouts · Select to enlarge

4. Position the Differential Clutch Gauge hand-tight on top of the differential clutch pack. Use Special Service Tool: 205-135 Gauge, Differential Clutch. Use the General Equipment: Vise

Source reference 2755
