2016 workshop · Driveline

Differential Carrier

205-02 Rear Drive Axle-Differential

2016 MustangReference 2,753 / 6,619HTML edition
← Chapter contentsProcedure contents

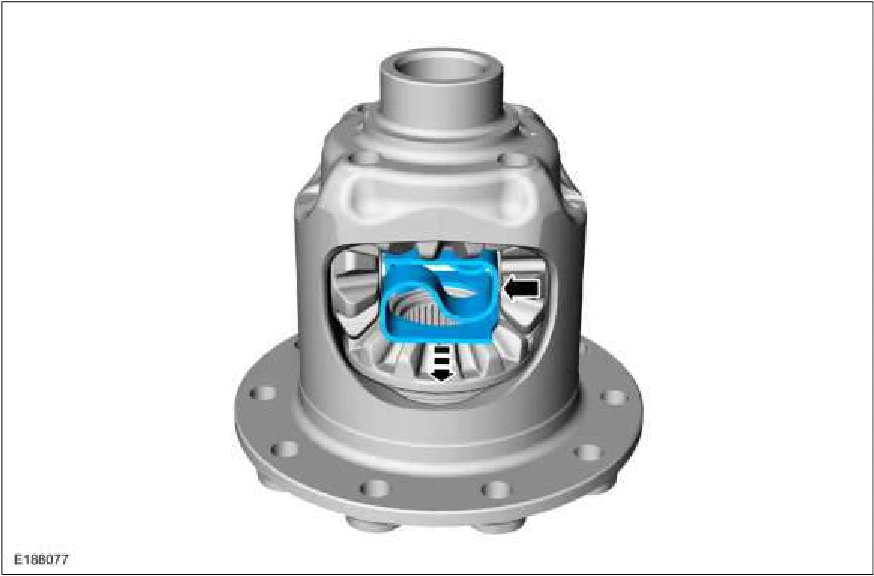

Differential Carrier — original illustration 1, reference 2753Original colors & callouts · Select to enlarge

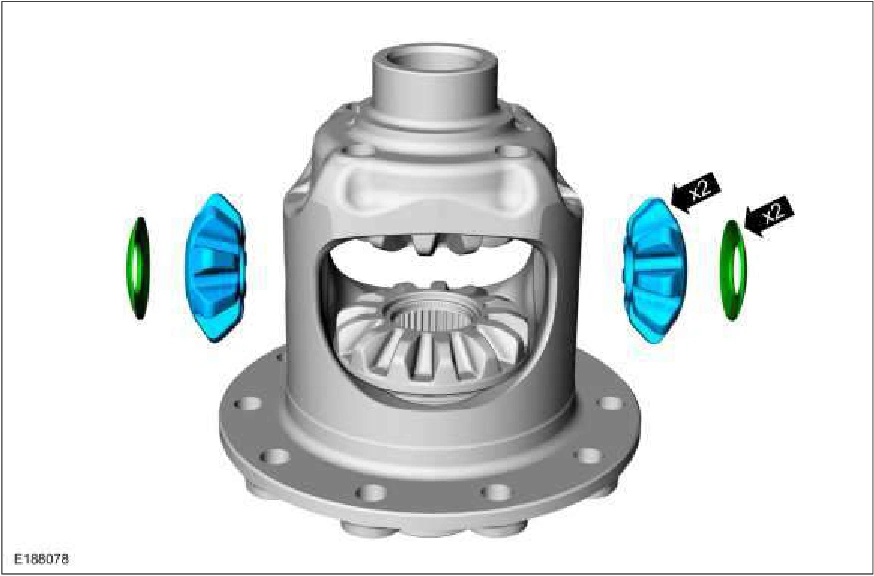

7. Remove the differential pinion gears and the pinion gear thrust washers.

Differential Carrier — original illustration 2, reference 2753Original colors & callouts · Select to enlarge

8. NOTE: Keep the differential clutch packs in order. Do not mix the differential clutch packs. The differential clutch packs must be reassembled in the same sequence.

Remove the differential side gears and disassemble the clutch assemblies.
