Drive Pinion Flange — 2016 workshop reference 2736

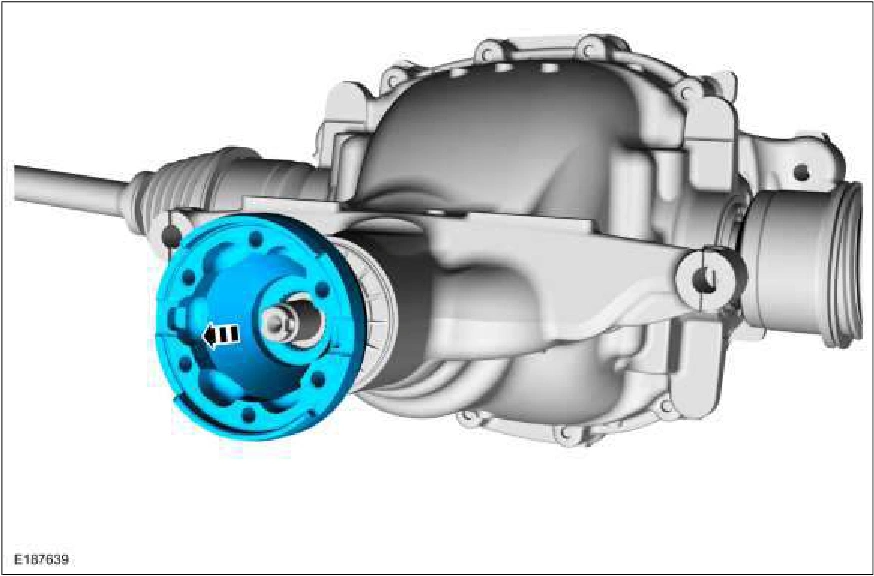

Drive Pinion Flange — original illustration 1, reference 2736Original colors & callouts · Select to enlarge

Installation

1. If necessary, install a new drive pinion seal. Refer to: Drive Pinion Seal (205-02 Rear Drive Axle/Differential, Removal and Installation).

2. NOTE: Mure sure drive pinion flange and drive pinion stem are phased correctly using previously applied mark.

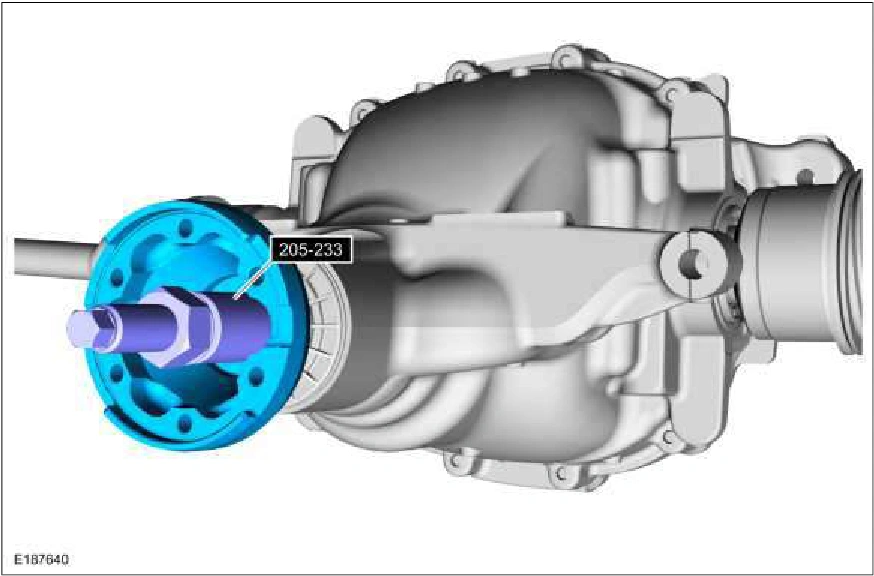

Using the special tool, install the pinion flange. Use Special Service Tool: 205-233 (T85T-4851-AH) Installer, Drive Pinion Flange.

Drive Pinion Flange — original illustration 2, reference 2736Original colors & callouts · Select to enlarge

3. NOTE: When installing the drive pinion flange and pinion nut with no differential carrier installed, the drag torque (torque to turn) should be 2.5 to 3.5 Nm (23-33 in-lbs).
