Drive Pinion — 2016 workshop reference 2728

Slowly rotate and record the rotational torque readings.

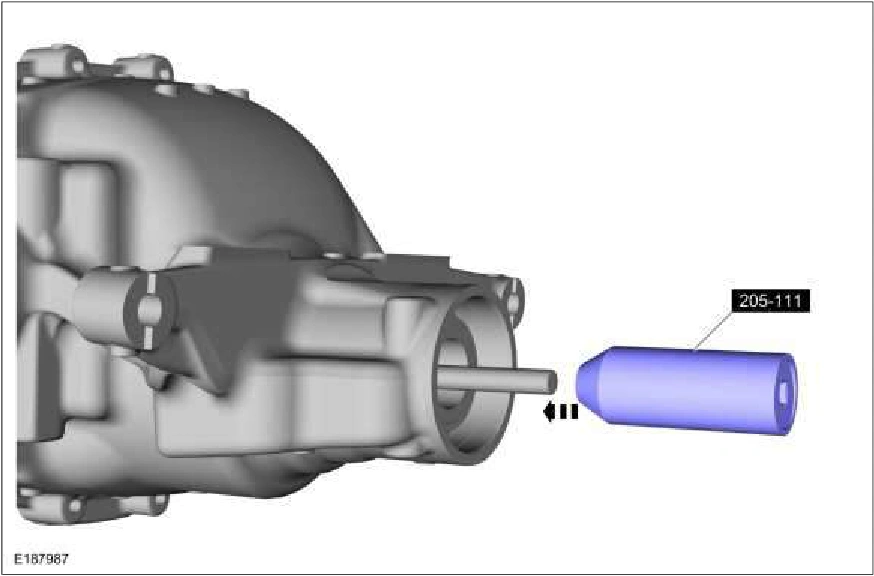

Drive Pinion — original illustration 1, reference 2728Original colors & callouts · Select to enlarge

4. Check for proper location of special tools.

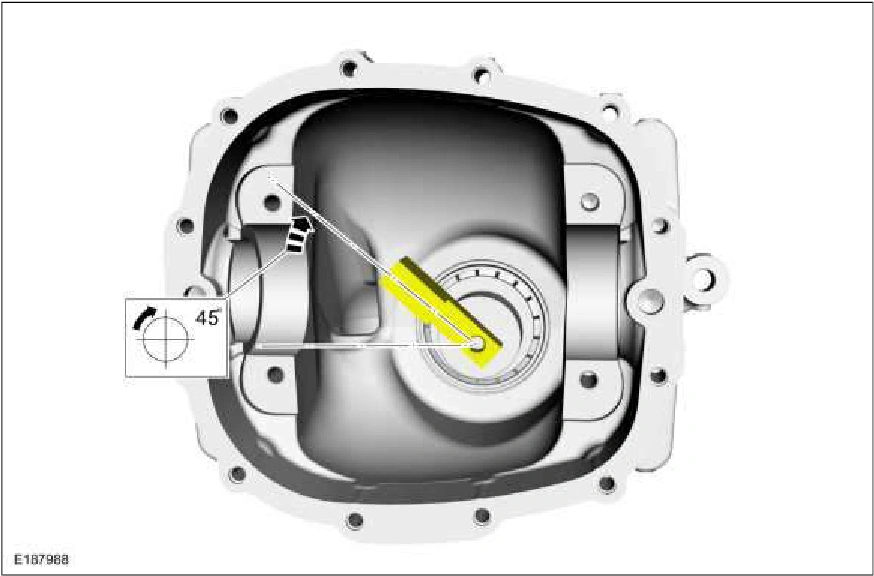

Drive Pinion — original illustration 2, reference 2728Original colors & callouts · Select to enlarge

5. Position the special tool. Install the differential bearing caps and differential bearing cap bolts. Use Special Service Tool: 205-1015 Gauge Tube. Torque : 71 lb.ft (96 Nm)

Source reference 2728
