Differential Carrier — 2016 workshop reference 2712

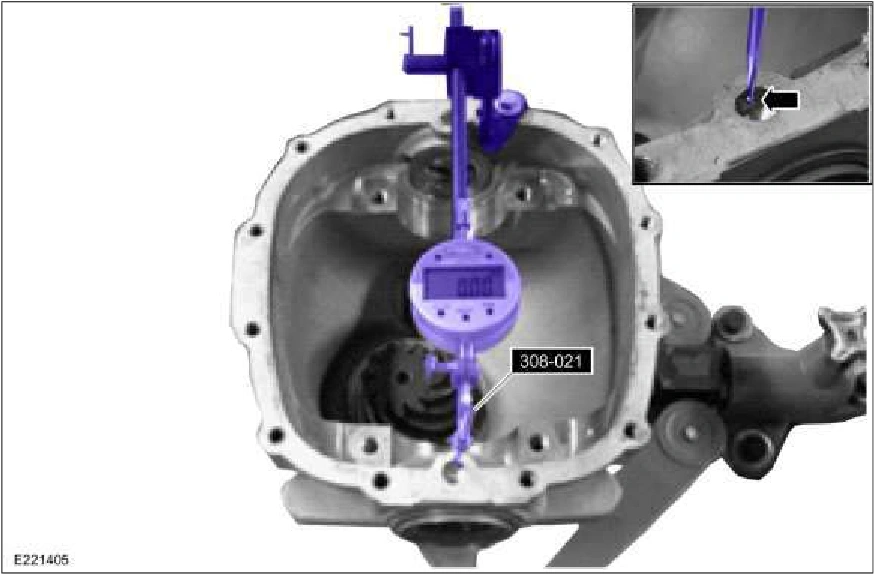

Differential Carrier — original illustration 1, reference 2712Original colors & callouts · Select to enlarge

2. Install a 12” / 300mm C-Clamp on the axle housing at the 12:00 O'clock and 6:00 O'clock positions. Install 2” x 2” x ¾” blocks of wood between the C-Clamp and the housing to prevent housing cracks. Use the General Equipment: Wooden Block

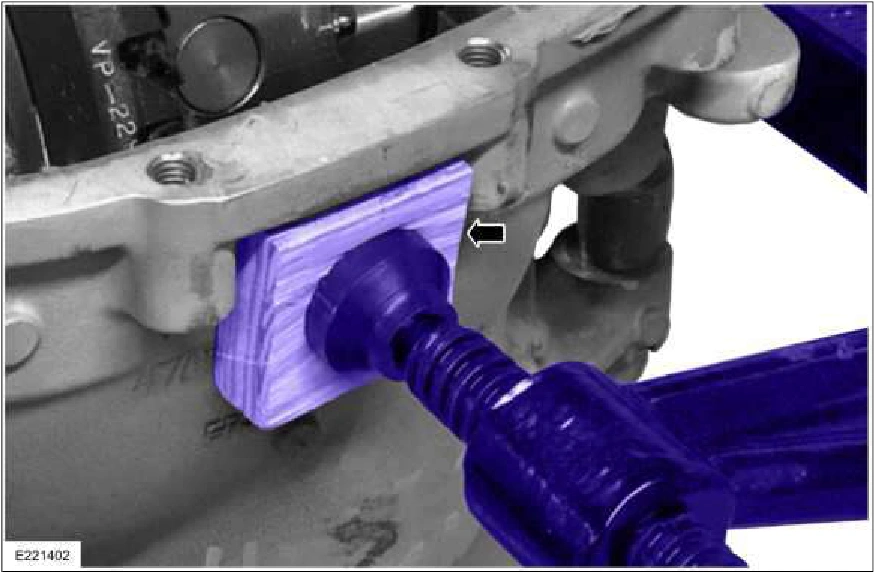

Differential Carrier — original illustration 2, reference 2712Original colors & callouts · Select to enlarge

3. Tighten the C-Clamp until the housing spreads 0.020” / 0.50mm.

Source reference 2712
