Differential Carrier — 2016 workshop reference 2709

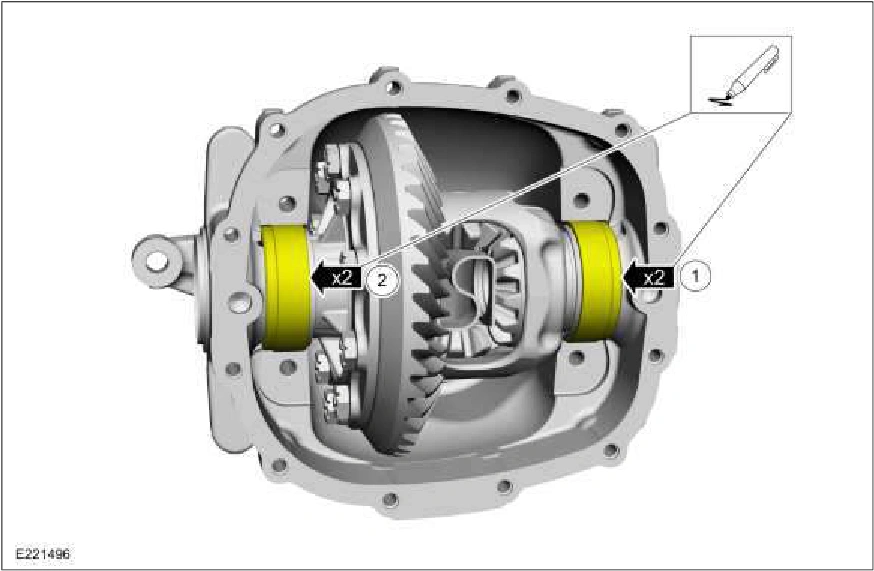

Differential Carrier — original illustration 1, reference 2709Original colors & callouts · Select to enlarge

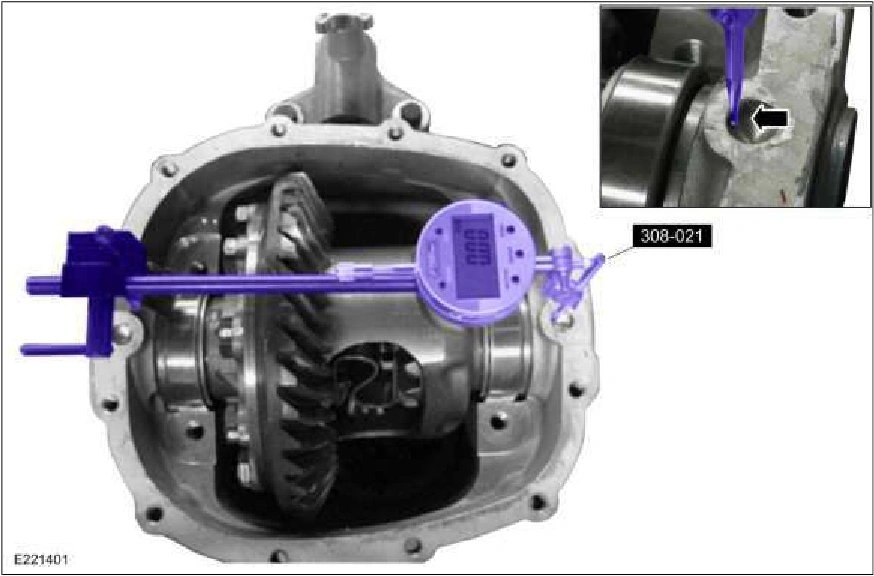

5. Install the Dial Indicator and special tool. Position the tip of the clutch housing gauge on the inside of the axle housing guide hole. Zero the dial indicator. Use Special Service Tool: 308-021 (T75L-4201-A) Gauge, Clutch Housing. Use the General Equipment: Dial Indicator

Differential Carrier — original illustration 2, reference 2709Original colors & callouts · Select to enlarge

6. Install a 12” / 300mm C-Clamp on the axle housing at the 12:00 O'clock and 6:00 O'clock positions. Install 2” x 2” x ¾” blocks of wood between the C-Clamp and the housing to prevent housing cracks. Use the General Equipment: Wooden Block
