Axle Assembly — 2016 workshop reference 2704

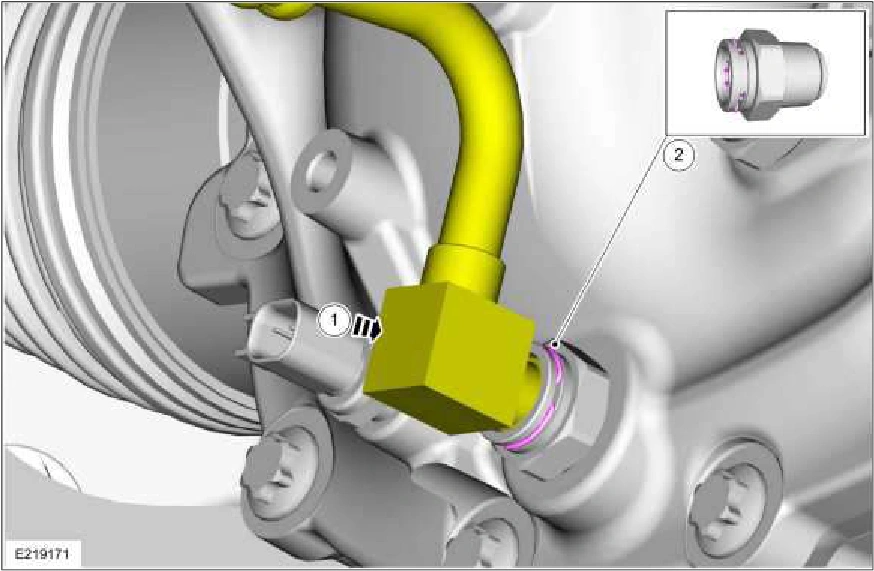

Axle Assembly — original illustration 1, reference 2704Original colors & callouts · Select to enlarge

6. If equipped.

1. Install the differential cooling return line.

2. Install the differential cooling return line retaining clip.

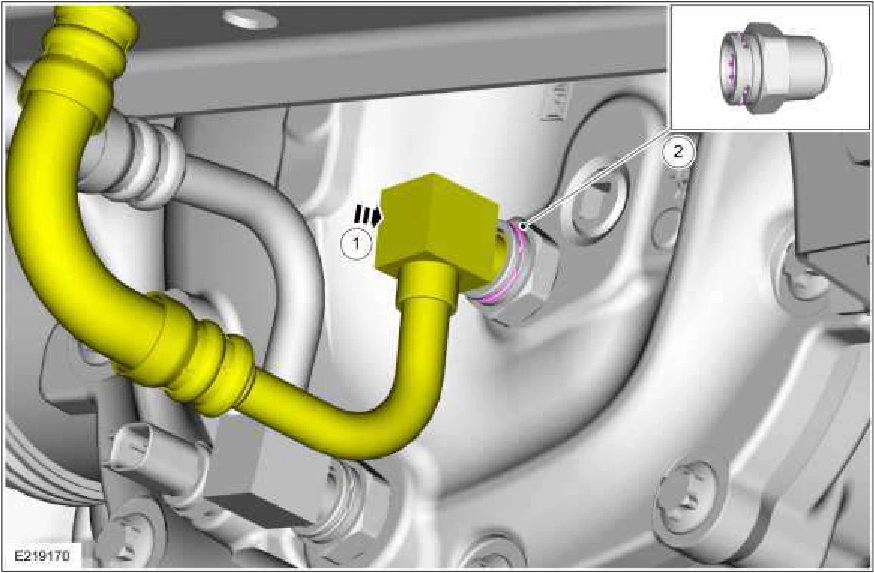

Axle Assembly — original illustration 2, reference 2704Original colors & callouts · Select to enlarge

7. Position the driveshaft to the pinion flange and align the index mark made during removal.
