Brake System Pressure Bleeding

206-00 Brake System - General Information 2016 Mustang

General Procedures Procedure revision date: 06/26/2014

Special Tool(s) / General Equipment

Brake/Clutch System Pressure Bleeder/Filler

Fluid Container

Bleeding

All vehicles

NOTICE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: The HCU bleeding procedure and a second brake system pressure bleed must be carried out if a new HCU has been installed.

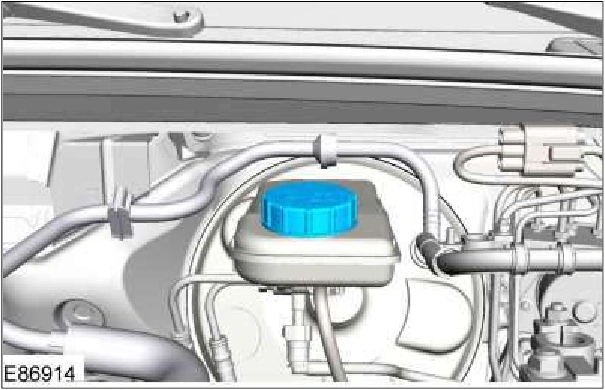

1. NOTE: Make sure the area around the master cylinder cap is clean and free of foreign material.

Remove the brake fluid reservoir cap.

Brake System Pressure Bleeding — original illustration 1, reference 2789Original colors & callouts · Select to enlarge

2. Make sure the fluid reservoir is filled with clean specified brake fluid. Refer to: Specifications (206-00 Brake System - General Information, Specifications).
