Brake System Pressure Bleeding — 2016 workshop reference 2792

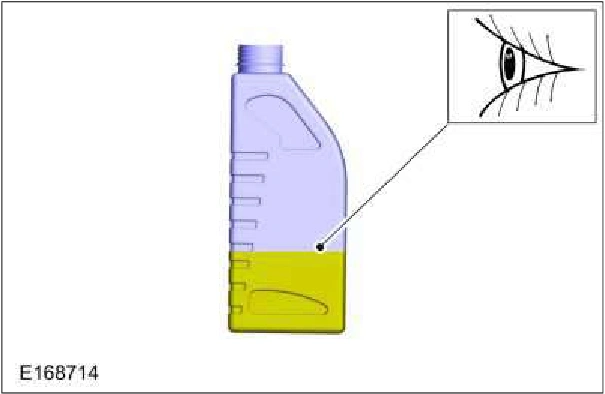

Brake System Pressure Bleeding — original illustration 1, reference 2792Original colors & callouts · Select to enlarge

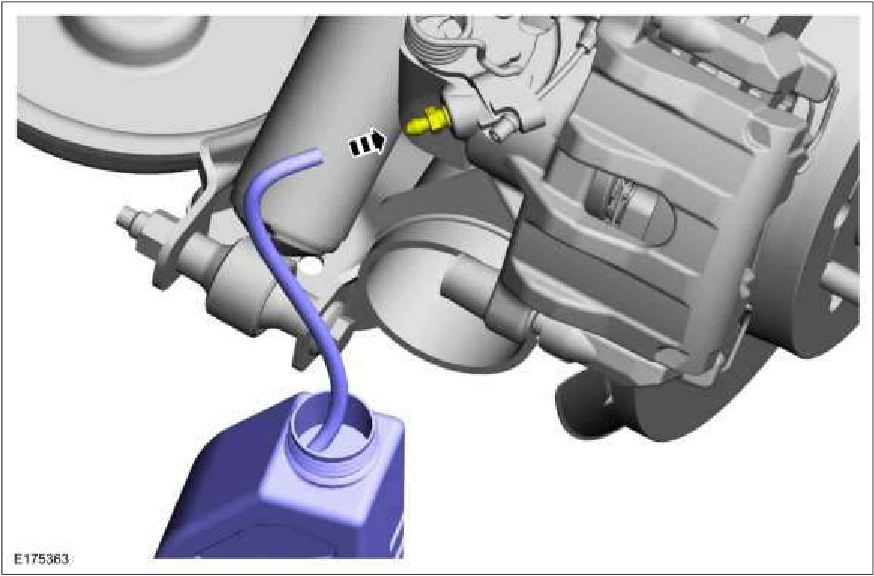

8. Submerge a hose into the brake fluid in the container and connect the hose to bleeder screw.

Brake System Pressure Bleeding — original illustration 2, reference 2792Original colors & callouts · Select to enlarge

Step 9

1. Loosen the bleeder screw. Loosen:

: 180°

2. Leave open until clear, bubble-free brake fluid flows, then tighten the bleeder screw.

Source reference 2792

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
