Brake System Pressure Bleeding — 2016 workshop reference 2795

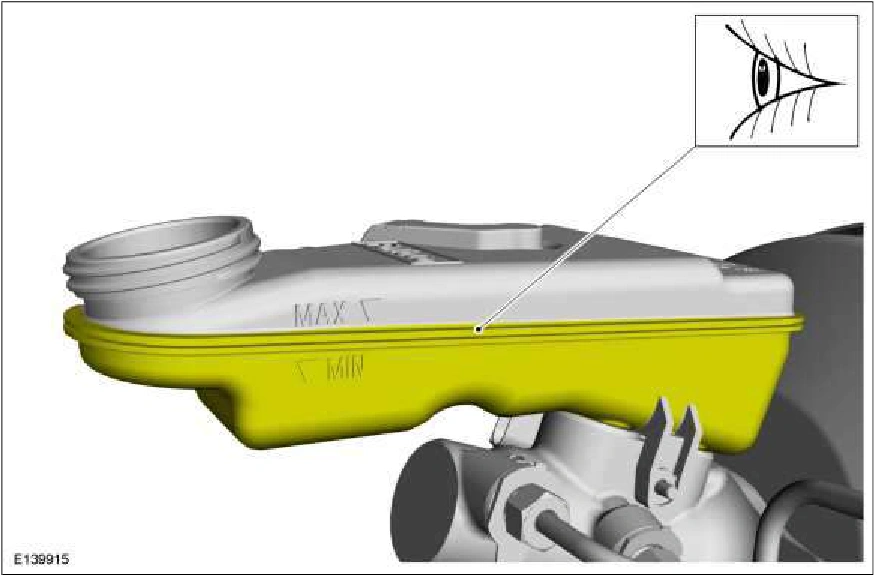

Brake System Pressure Bleeding — original illustration 1, reference 2795Original colors & callouts · Select to enlarge

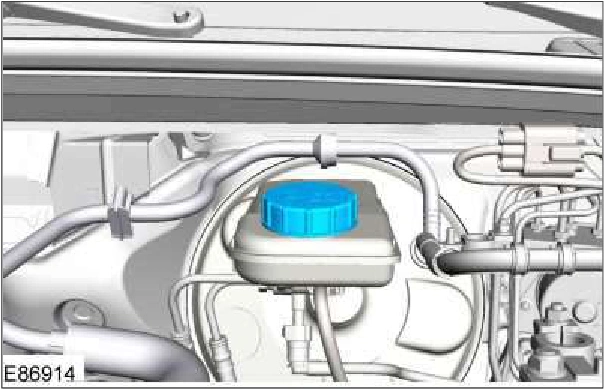

17. Install the brake fluid reservoir cap.

Brake System Pressure Bleeding — original illustration 2, reference 2795Original colors & callouts · Select to enlarge

Vehicles with new hydraulic control unit (HCU) installed

NOTE: The HCU bleeding procedure and a second brake system pressure bleed must be carried out if a new HCU has been installed.

18. Using the diagnostic scan tool, follow the ABS Service Bleed instructions.

19. Repeat brake system pressure bleeding steps.

Source reference 2795
