Component Bleeding — 2016 workshop reference 2797

Component Bleeding — original illustration 1, reference 2797Original colors & callouts · Select to enlarge

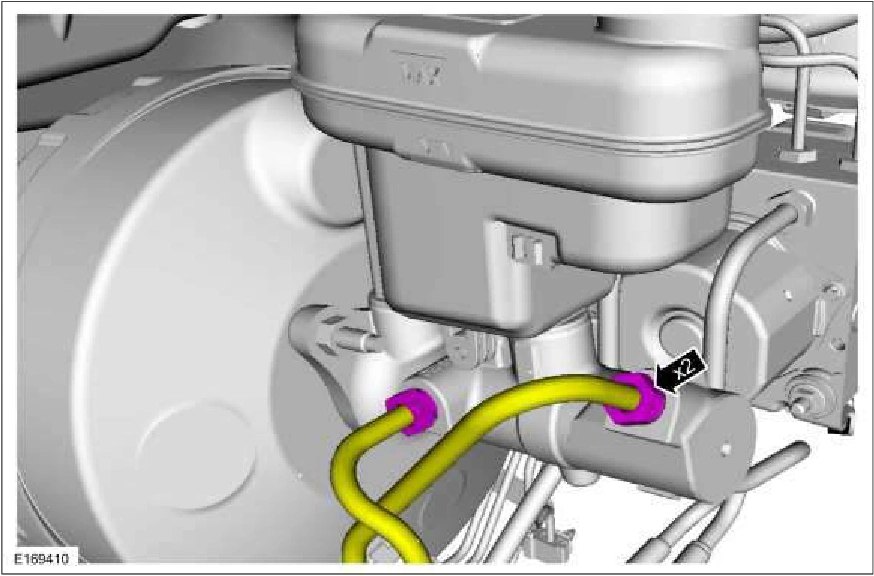

3. Loosen and remove the brake tube fittings.

Component Bleeding — original illustration 2, reference 2797Original colors & callouts · Select to enlarge

4. Install the master cylinder bleeding set. Use the General Equipment: Master Cylinder Bleeding Set
