Step 11

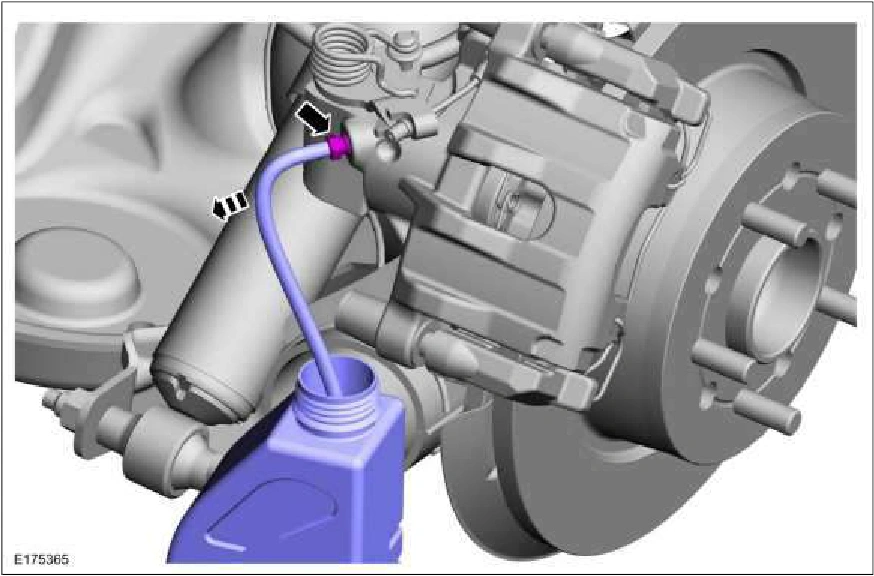

1. Tighten the bleeder screw to specification abd remove the hose and brake fluid container.

Refer to: Specifications (206-00 Brake System - General Information, Specifications).

Brake System Pressure Bleeding — original illustration 1, reference 2794Original colors & callouts · Select to enlarge

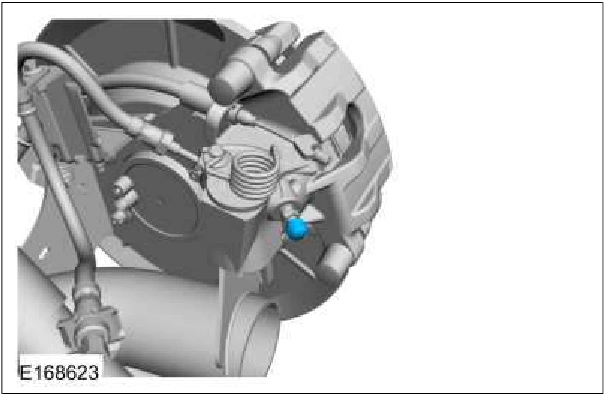

12. If equipped, install the bleeder screw cap.

Brake System Pressure Bleeding — original illustration 2, reference 2794Original colors & callouts · Select to enlarge

13. NOTE: For vehicles equipped with 4 or 6 piston brake calipers, bleed the inner bleeder screw first, followed by the outer bleeder screw.

Repeat steps 5-12 at the remaining wheel ends.

14. Lower the vehicle.

15. Close the bleeder tank valve and release the pressure. Remove the General Equipment: Brake/Clutch System Pressure Bleeder/Filler

16. Fill the reservoir with clean, specified brake fluid. Refer to: Specifications (206-00 Brake System - General Information, Specifications).
