Brake System Pressure Bleeding — 2016 workshop reference 2793

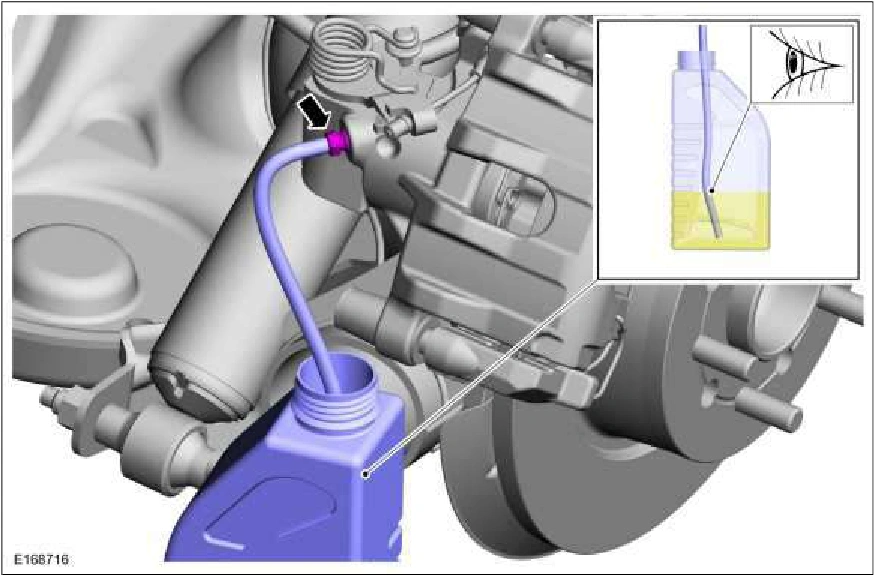

Brake System Pressure Bleeding — original illustration 1, reference 2793Original colors & callouts · Select to enlarge

Vehicles with rear integral parking brake calipers

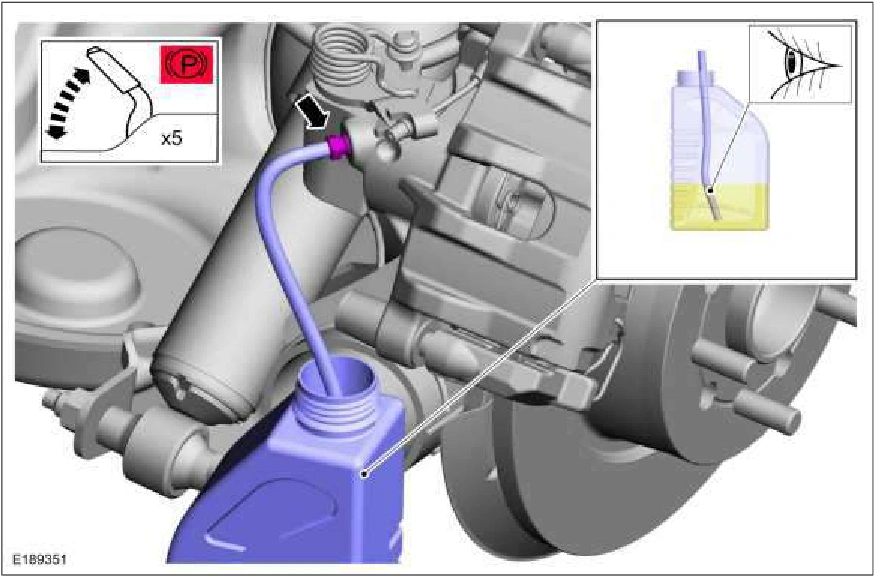

10. NOTE: Due to the complexity of the fluid path within the rear integral parking brake calipers, it is necessary to apply and release the parking brake during the bleed procedure.

1. Apply and release the parking brake 5 times.

2. Loosen the bleeder screw. Loosen: 180°

3. Leave open until clear, bubble-free fluid flows and then tighten the bleeder screw.

4. Repeat as necessary.

Brake System Pressure Bleeding — original illustration 2, reference 2793Original colors & callouts · Select to enlarge

All vehicles

Source reference 2793
