Component Bleeding — 2016 workshop reference 2798

Component Bleeding — original illustration 1, reference 2798Original colors & callouts · Select to enlarge

5. Have an assistant pump the brake pedal slowly until clear bubble free fluid flows from the brake tubes.

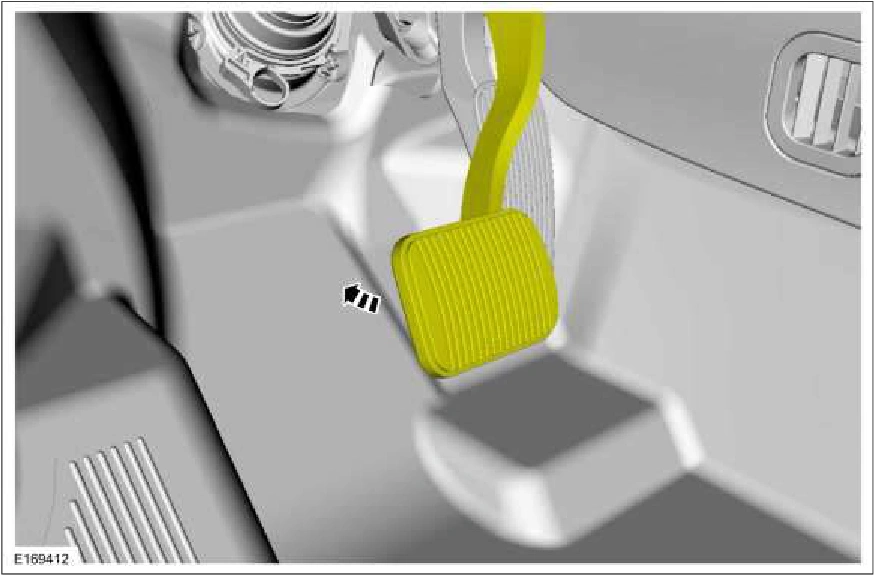

Component Bleeding — original illustration 2, reference 2798Original colors & callouts · Select to enlarge

6. Remove the master cylinder bleeding set. Use the General Equipment: Master Cylinder Bleeding Set

Source reference 2798

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
